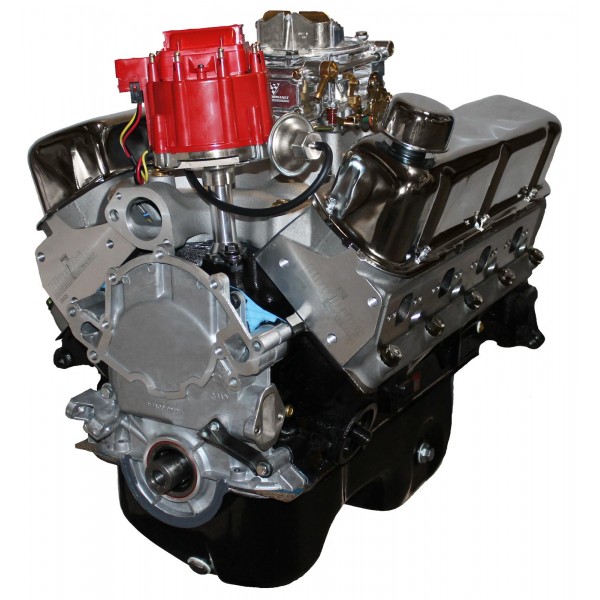

BluePrint Engines Ford 347 C.I.D. 415 HP Dressed Stroker Long Block Crate Engines BP3474CTC

HP & Torque: 415 HP / 415 FT LBS
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Cast Steel Crank
Forged Pistons
BLOCK:
Hand picked seasoned block
Square and parallel decked
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness
2-Bolt Main
4.000" Bored .040" Over
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
ROTATING ASSEMBLY:
New BluePrint Cast steel crankshaft
3.400" Stroke
Forged I-beam 5.400" connecting rods
Forged pistons
28oz External balance
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -HP9008
60cc chamber
2.02" intake/1.60" exhaust valves
190cc intake/65cc exhaust runners
CAM SPECS:
Cam Type: Roller
.543 Intake .554 Exhaust
218 Intake / 226 Exhaust duration
@ .050 - 112 degree lobe separation
IGNITION TIMING:
34 Degrees Total at 3500 RPM
ALSO INCLUDES:
Dual plane, satin aluminum intake manifold
600cfm carburetor
Distributor
Valve covers
Painted oil pan
Brass freeze plugs
Dyno test results shipped with engine

Call for Best Pricing
