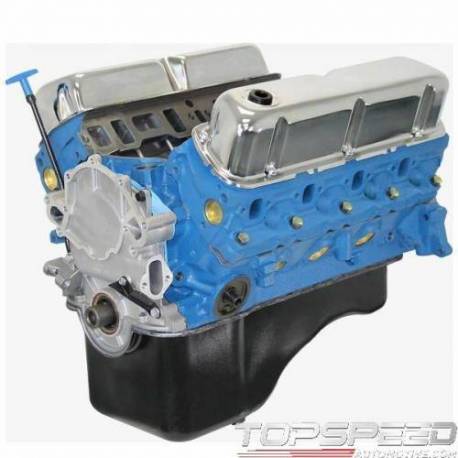

BluePrint Engines 302CI Crate Engine

FORD 302 CUBIC INCH
BluePrint Engines 302CI Crate Engine
- Small Block Ford Style
- Longblock
- Iron Heads
- Roller Cam
-

This engine will be dyno tested before it ships to you at no additional charge.


HP & Torque: 300 HP / 330 FT LBS
Compression Ratio: 9.0:1
Cast Iron Heads
Hydraulic Roller Cam
Cast Steel Crank
Hypereutectic Pistons

BLOCK:
Hand picked seasoned block
Square and parallel decked
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness
2-Bolt Main
4.000in. Bored .040in. Over
1-Piece Rear Main Seal
Mech fuel pump provision: Not applicable on 'CTF' models

ROTATING ASSEMBLY:
Ford, machined and balanced by BluePrint Engines
3.000in. Stroke
OEM type 5.090in. connecting rods
Hypereutectic pistons
50 oz External balance

CYLINDER HEADS:
Cast Iron
Hardened retainers and springs
1.94 swirl polished intake valves
1.60 swirl polished exhaust valves

CAM SPECS:
Cam Type: Roller
.543 Intake .554 Exhaust
218 Intake / 226 Exhaust duration
@ .050 - 112 degree lobe separation

IGNITION TIMING:
34 Degrees Total at 3500 RPM

ALSO INCLUDES:
Chrome valve covers
Chrome timing cover
Painted oil pan
Brass freeze plugs

Dyno test results shipped with engine

NOTES:
Not for use in pollution controlled vehicles, or vehicles with oem fuel injection.
Engine timing cover is designed for standard rotation water pump ONLY
