• Out-of-Stock

BluePrint Engines 306CI Crate Engine

Manufacturer: BLUE PRINT ENGINES
Part number: BP3060CTF
MPN: BP3060CTF
Availability: Out-of-Stock
£0.00
Tax included

Description

FORD 306 CUBIC INCH

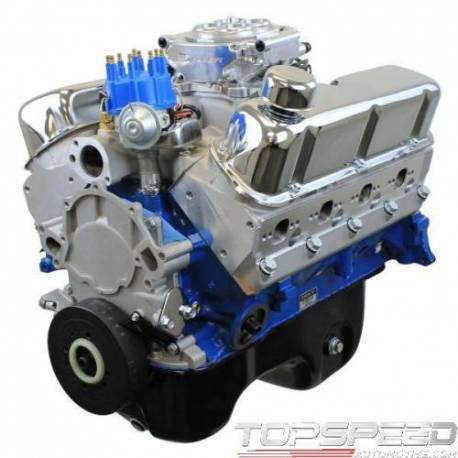

BluePrint Engines 306CI Crate Engine
- Small Block Ford Style
- Dressed Longblock with Fuel Injection
- Aluminum Heads
- Roller Cam

This engine will be dyno tested before it ships to you at no additional charge.


HP & Torque: 370 HP / 350 FT LBS
Compression Ratio: 9.5:1
Aluminum Heads
Hydraulic Roller Cam
Cast Steel Crank
Hypereutectic Pistons

BLOCK:
Hand picked seasoned block
Square and parallel decked
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness
2-Bolt Main
4.000in. Bored .040in. Over
1-Piece Rear Main Seal
Mech fuel pump provision: Not applicable on 'CTF' models

ROTATING ASSEMBLY:
Ford, machined and balanced by BluePrint Engines
3.000in. Stroke
OEM type 5.090” connecting rods
Hypereutectic pistons
50oz External balance

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -HP9009
60cc chamber
2.02in. intake/1.60in. exhaust valves
190cc intake/60cc exhaust runners

CAM SPECS:
Roller Cam
.543 Intake / .554 Exhaust
218 Intake / 226 Exhaust Duration
@ .050 - 112 Degree Lobe Separation

IGNITION TIMING:
10-16 degrees initial, 32-34 total

ALSO INCLUDES:
Intake Manifold
Fuel Injection
Distributor
Oil Pan
Timing Cover
Valve Covers
Harmonic Balancer
Dyno test results shipped with engine

NOTES:
Not for EGR.
Painted Ford Blue
Engine requires a V-belt standard rotation water pump and belt system.
Engine package does not include fuel pump.
Engine is configured to run in fuel only mode.
Recommended break-in Oil: BPP710 BluePrint Crate Engine Break In Oil.
Engine timing cover is designed for standard rotation water pump ONLY

Holley Sniper EFI is NOT compatible with AOD trans. It does NOT have AOD kickdown lever.
