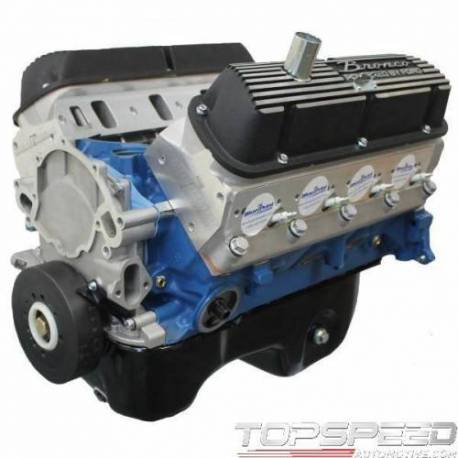

306CI BRONCO EDITION CRATE ENGINE

FORD 306 CUBIC INCH
306CI BRONCO EDITION CRATE ENGINE
- SMALL BLOCK FORD STYLE
- LONGBLOCK

This engine will be dyno tested before it ships to you at no additional charge.


HP & Torque: 365 HP / 365 FT LBS
Compression Ratio: 9.2:1
Aluminum Heads
Hydraulic Roller Cam
Cast Steel Crank
Hypereutectic Pistons

BLOCK:
Hand picked seasoned block
Square and parallel decked
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness
2-Bolt Main
4.000in. Bored .040in. Over
1-Piece Rear Main Seal
Mechanical fuel pump provision: Yes

ROTATING ASSEMBLY:
Cast steel crankshaft
3.000in. Stroke
OEM type 5.090in. connecting rods
Hypereutectic pistons
50oz External balance

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -HP9009
60cc chamber
2.02in. intake/1.60in. exhaust valves
190cc intake/60cc exhaust runners

CAM SPECS:
Cam Type: Roller
.533 Intake .554 Exhaust
215 Intake / 220 Exhaust duration
@ .050 - 114 degree lobe separation

IGNITION TIMING:
10-16 degrees initial, 32-34 total

ALSO INCLUDES:
Bronco Script valve covers
Harmonic Balancer

Dyno test results shipped with engine

NOTES:
Painted Ford Blue
Recommended break in oil for your BluePrint Crate Engine: BPP710
Not for EGR
Engine timing cover is designed for standard rotation water pump ONLY
