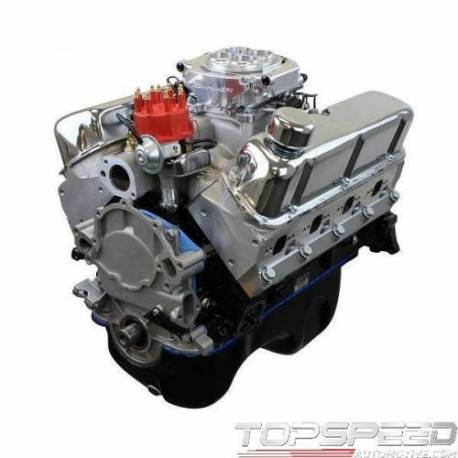

BluePrint Engines 347CI Stroker Crate Engine

FORD 347 CUBIC INCH
BluePrint Engines 347CI Stroker Crate Engine
- Small Block Ford Style
- Dressed Longblock with Fuel Injection
- Aluminum Heads
- Roller Cam

This engine will be dyno tested before it ships to you at no additional charge.


HP & Torque: 400 HP / 415 FT LBS
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Cast Steel Crank
Forged Pistons

BLOCK:
Hand picked seasoned block
Square and parallel decked
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness
2-Bolt Main
4.000in. Bored .040in. Over
1-Piece Rear Main Seal
Mech fuel pump provision: Not applicable on 'CTF' models

ROTATING ASSEMBLY:
New BluePrint Cast steel crankshaft
3.400in. Stroke
Forged I-beam 5.400in. connecting rods
Forged pistons
28oz External balance

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -HP9008
60cc chamber
2.02in. intake/1.60in. exhaust valves
190cc intake/65cc exhaust runners

CAM SPECS:
Cam Type: Roller
.543 Intake .554 Exhaust
218 Intake / 226 Exhaust duration
@ .050 - 112 degree lobe separation

IGNITION TIMING:
34 Degrees Total at 3500 RPM

ALSO INCLUDES:
Dual plane, satin aluminum intake manifold
EFI system
Distributor
Valve covers
Painted oil pan
Brass freeze plugs
Dyno tested and shipped with results

NOTES:
Engine package does not include fuel pump.
Engine is configured to run in fuel only mode.
Engine timing cover is designed for standard rotation water pump ONLY

Holley Sniper EFI is NOT compatible with AOD trans. It does NOT have AOD kickdown lever.
