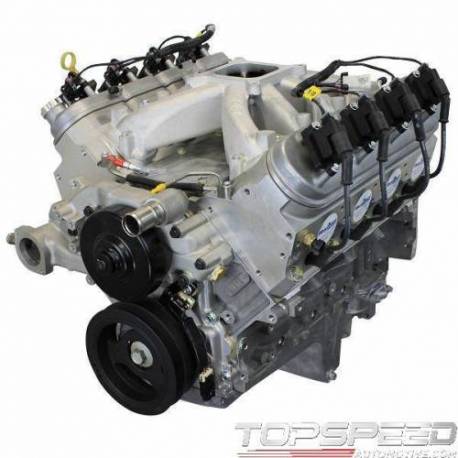

BluePrint Engines 376CI Crate Engine

GM COMPATIBLE COMPLETE LS ENGINES 376 CUBIC INCH
BluePrint Engines 376CI Crate Engine
- GM LS3 Style
- Aluminum Heads
- Roller Cam
- 6.2L
- CT Longblock

This engine will be dyno tested before it ships to you at no additional charge.

LS Retrofit engine with Carbureted intake, designed for customers looking to finish off an LS with their own induction or dress up equipment.
HP & Torque: 520 HP / 470 FT LBS
Compression Ratio: 10.7:1
Aluminum Heads
Hydraulic Roller Cam
Nodular Iron Crankshaft
Hypereutectic Pistons

BLOCK:
New GM Aluminum 6.2L block
OEM Block Machined in the USA!
6-Bolt Main
1-Piece Rear Main Seal

ROTATING ASSEMBLY:
Nodular Iron crankshaft
3.622in. Stroke
6.098in. connecting rods w/ 150,000 psi bolts
Hypereutectic Pistons
Internally Balanced

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -PS8015
72cc chamber
2.165in. intake/1.600in. exhaust valves
259cc intake/102cc exhaust runners

CAM SPECS:
Cam Type: Roller Cam
.612 Intake .585 Exhaust
225 Intake / 238 Exhaust duration
@ .050 - 113 degree lobe separation, 110 ICL

IGNITION TIMING:
Ignition box required - BluePrint Engines recommends MSD 6014 Ignition system

ALSO INCLUDES:
GM Musclecar Swap Oil Pan
Carbureted Intake Manifold
Coil Packs
Spark Plugs and Wires
Waterpump
Harmonic Balancer

NOTES:
Engine is not shipped with Engine controller kit. Must purchase separately for your application. Engine is designed for Carbed LS, Or aftermarket EFI applications. Carb not included.
