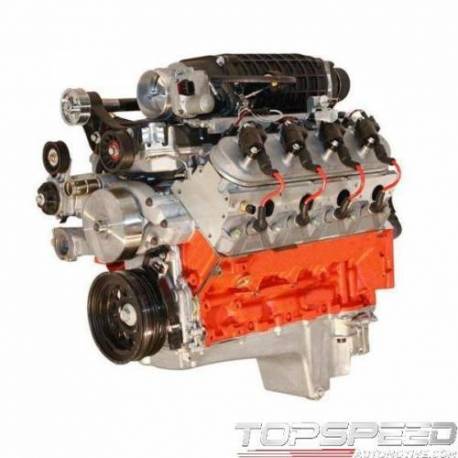

BluePrint Engines 408CI LS Stroker Crate Engine
Availability:
Out-of-Stock
Description
GM COMPATIBLE COMPLETE LS ENGINES 408 CUBIC INCH
BluePrint Engines 408CI LS Stroker Crate Engine
- GM LS Style
- Dressed Longblock with Fuel Injection
- Supercharged
- Aluminum Heads
This engine will be dyno tested before it ships to you at no additional charge.
HP & Torque: 725 HP / 699 FT LBS
Compression Ratio: 10.8:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons
BLOCK:
Hand picked seasoned GM Cast Iron 6.0L block , Bored .030
OEM Block Machined in the USA!
6-Bolt Main
4.000in. Bored .030in. over
1-Piece Rear Main Seal
ROTATING ASSEMBLY:
New Forged Crankshaft
4.000in. Stroke
Forged I-beam 6.125in. connecting rods
Forged Pistons
Internal
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -PS8015
72cc chamber
2.165in. intake/1.600in. exhaust valves
259cc intake/102cc exhaust runners
CAM SPECS:
Hydraulic Roller Cam
.624 intake .624 exhaust lift
239 intake 255 exhaust duration
@ .050 - 114 degree lobe separation
ALSO INCLUDES:
Valve Covers
Oil Pan
Timing Cover
Coil Packs
2.3L Magnuson Supercharger
Upgraded S107 60lb Mototron injectors
Dyno tested & shipped with results
NOTES:
58X reluctor ring, Universal fit oil pan, drive by wire throttle body and matching throttle pedal.
Not designed for late model applications that were originally equipped with fuel injection
Also includes sensors, coil packs and wiring harness, and a new ECM with our custom tune installed.
The Included LS controller package is for engine control only. Does not contain any transmission or body control. The ECU comes with calibration that is optimal for our engine, however please note that vehicle parameters such as gearing, tire size, vehicle weight, air intake, headers, etc. may necessitate additional tuning once installed into your specific vehicle. The included ECU is unlocked for further refinement at your local dyno shop if required.
BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.
BluePrint Engines 408CI LS Stroker Crate Engine
- GM LS Style
- Dressed Longblock with Fuel Injection
- Supercharged
- Aluminum Heads
This engine will be dyno tested before it ships to you at no additional charge.
HP & Torque: 725 HP / 699 FT LBS
Compression Ratio: 10.8:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons
BLOCK:
Hand picked seasoned GM Cast Iron 6.0L block , Bored .030
OEM Block Machined in the USA!
6-Bolt Main
4.000in. Bored .030in. over
1-Piece Rear Main Seal
ROTATING ASSEMBLY:
New Forged Crankshaft
4.000in. Stroke
Forged I-beam 6.125in. connecting rods
Forged Pistons
Internal
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -PS8015
72cc chamber
2.165in. intake/1.600in. exhaust valves
259cc intake/102cc exhaust runners
CAM SPECS:
Hydraulic Roller Cam
.624 intake .624 exhaust lift
239 intake 255 exhaust duration
@ .050 - 114 degree lobe separation
ALSO INCLUDES:
Valve Covers
Oil Pan
Timing Cover
Coil Packs
2.3L Magnuson Supercharger
Upgraded S107 60lb Mototron injectors
Dyno tested & shipped with results
NOTES:
58X reluctor ring, Universal fit oil pan, drive by wire throttle body and matching throttle pedal.
Not designed for late model applications that were originally equipped with fuel injection
Also includes sensors, coil packs and wiring harness, and a new ECM with our custom tune installed.
The Included LS controller package is for engine control only. Does not contain any transmission or body control. The ECU comes with calibration that is optimal for our engine, however please note that vehicle parameters such as gearing, tire size, vehicle weight, air intake, headers, etc. may necessitate additional tuning once installed into your specific vehicle. The included ECU is unlocked for further refinement at your local dyno shop if required.
BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.
BluePrint Engines 408CI LS Stroker Crate Engine - Part number: MLL-BPLS4080SCT - for American Cars - delivery to the UK and the EU
Manufacturer part number: BPLS4080SCT - BluePrint Engines 408CI LS Stroker Crate Engine engine-complete-assembly-blueprint-engines
Package dimensions
Width: 0.00 inch
Height: 0.00 inch
Depth: 0.00 inch
Weight: 0.00 lb
