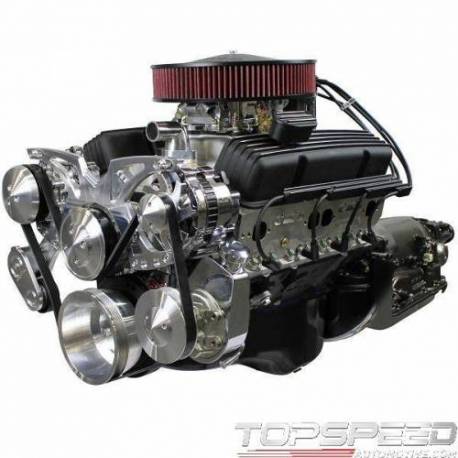

BluePrint Engines Builder Series 400CI Stroker Crate Engine and TKX Manual Trans Package

SBC Compatible 400 cubic inch
BluePrint Engines Builder Series 400CI Stroker Crate Engine and TKX Manual Trans Package
- Small Block GM Style
- Dressed Longblock with Carburetor
- Aluminum Heads
- Roller Cam

This engine will be dyno tested before it ships to you at no additional charge.


HP & Torque: 508 HP / 473 FT LBS
Compression Ratio: 10.3:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons

BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.125in. Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:
New BluePrint Forged Crankshaft
3.750in. Stroke
OEM type 5.700in. connecting rods w/ 150,000 psi bolts
Forged Pistons
Internal Front/ External Rear

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads - HP8103
64cc chamber
2.08in. intake/1.60in. exhaust valves
220cc intake/67cc exhaust runners

CAM SPECS:
Cam Type: Roller
.555 Intake .576 Exhaust
236 Intake / 242 Exhaust duration
@ .050 - 110 ° lobe separation

IGNITION TIMING:
10-16° inital and total timing 32-34° at 3500 RPM

ALSO INCLUDES:
Intake Manifold dual plane, satin aluminum
850cfm Carburetor
Valve covers, oil pan and timing cover
Brass freeze plugs

Dyno test results shipped with engine
Fuel Pump
Spark plugs & wires
180 degree Thermostat & housing
Oil filter
Plug wire seperators
complete front accessory drive with A/C and P/S

ASSEMBLED W/ COMPLETE TKX TRANS PACKAGE:
Mcleod Super Street Pro single disk clutch
Hydraulic throw out bearing
Bell housing
Billet flywheel
Starter

First Gear Ratio: 2.87:1
Second Gear Ratio: 1.89:1
Third Gear Ratio: 1.28:1
Fourth Gear Ratio: 1.00:1
Fifth Gear Ratio: 0.81:1
