BluePrint Engines Builder Series 454 CI SBC ProSeries Stroker Crate Engine and TKX Manual Trans Package

SBC Compatible 454 cubic inch
BluePrint Engines Builder Series 454 CI SBC ProSeries Stroker Crate Engine and TKX Manual Trans Package
- Small Block GM Style
- Dressed Longblock with Carburetor

This engine will be dyno tested before it ships to you at no additional charge.

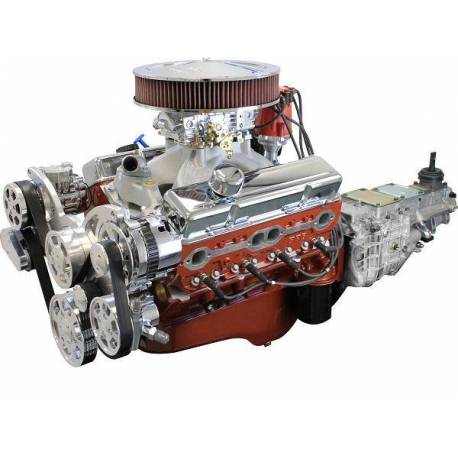

Pictured with Custom paint. Available for additional charge.
HP & Torque: 563 HP / 545 FT LBS
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons

BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.250in. Bore
2-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:
New BluePrint Forged Crankshaft
4.000in. Stroke
Forged 6.000in. connecting rods
Forged Pistons
Internal Front/ Internal Rear

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads - HP8103
64cc chamber
2.08in. intake/1.60in. exhaust valves
220cc intake/67cc exhaust runners

CAM SPECS:
Cam Type: Roller
.638 Intake .622 Exhaust
251 Intake / 259 Exhaust duration
@ .050 - 114 degree lobe separation

IGNITION TIMING:
Initial timing - 10-16° and Total timing 32-34°

ALSO INCLUDES:
Satin aluminum Intake Manifold
850 CFM Carburetor
Valve covers, oil pan and timing cover
Brass freeze plugs

Dyno test results shipped with engine
Spark plugs & wires
180 degree Thermostat & housing
Installed complete front accessory drive with A/C and P/S
Electric Fuel Pump

ASSEMBLED W/ COMPLETE TKX TRANS PACKAGE:
Mcleod Super Street Pro single disk clutch
Hydraulic throw out bearing
Bell housing
Billet flywheel
Starter

First Gear Ratio: 2.87:1
Second Gear Ratio: 1.89:1
Third Gear Ratio: 1.28:1
Fourth Gear Ratio: 1.00:1
Fifth Gear Ratio: 0.82:1


NOTES:
Not for use in pollution controlled vehicles.
Engine is pictured with custom paint Job, available for additional charge. No-Charge options include Block color of Orange or Black, with natural heads, intake, and black oil pan.
