BLUEPRINT ENGINES BUILDER SERIES 632 CI FUEL INJECTED PROSERIES STROKER CRATE ENGINE AND 4L80E AUTO TRANS PACKAGE

BBC compatible 632 cubic inch

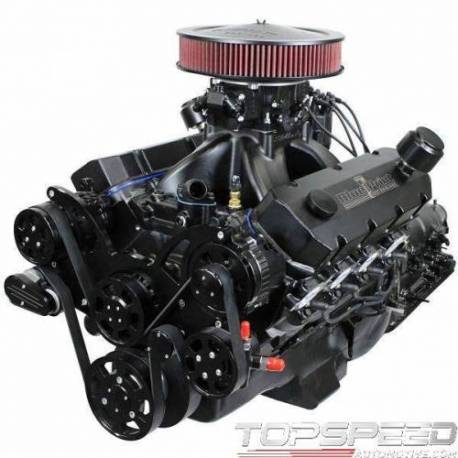

BluePrint Engines Builder Series 632 CI Fuel Injected ProSeries Stroker Crate Engine and 4L80E Auto Trans Package
- Big Block GM Style
- 10.3L
- Drop In Ready -Blackout

This engine will be dyno tested before it ships to you at no additional charge.


HP & Torque: 815 HP / 775 FT LBS
Compression Ratio: 11.0:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons

BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.600in. Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Tall Deck (Cyl Deck is Approx .400 taller / wider than oem block)

ROTATING ASSEMBLY:
New BluePrint Forged Crankshaft
4.750in. Stroke
Forged H-beam 6.635in. connecting rods
Forged Pistons
Internal

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -PS8012
119cc chamber
2.30in. intake/1.88in. exhaust valves
358cc intake/125cc exhaust runners
Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
Must verify clearance of exhaust,shift linkage, steering components etc. before ordering.

CAM SPECS:
Cam Type: Roller
.698 / .698 Lift
272 / 282 duration @ .050 - 110 degree LSA

ALSO INCLUDES:
Valve covers, oil pan and timing cover
Harmonic balancer
Complete Fuel Injection system
Intake Manifold
Pro Billet Distributor
Dyno test results shipped with engine
Installed Complete Black Billet Front accessory drive with alternator, P/S, A/C, WP, all pulleys and belts.
Aeromotive A1000 Fuel pump
ASSEMBLED W/ COMPLETE 4L80E AUTO TRANS PACKAGE:
4L80E Complete Package with electronic controller included
W/Lockup capability
3800+ Stall Torque converter
Flexplate
Starter

NOTES:
Not for use in pollution controlled vehicles.
This engine features .300 raised exhaust ports and .400 deck height increase over OEM.
Must verify clearance of exhaust, shift linkage, steering components etc. before ordering.
Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: B632FKB4L8X
Fuel Delivery Type: Carbureted 1250CFM
Spark Plug: BPP7938 NGK 7938 BKR5E
Spark Plug Gap: .035in.
Harmonic Balancer: Non-Weighted
Flexplate/Flywheel: Non-Weighted
Stall Converter: 3,800-4,200
Intake Manifold: Single plane, satin aluminum
Fuel Recommendation: 91 Octane
Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°. If using a dominator style carb, initial timing 16-20 and total timing of 32-34 by 2500 RPM.
Firing Order: 1,8,4,3,6,5,7,2
Notes: New BluePrint block manufactured and machined in the USA. Recommended break in oil for your BluePrint Crate Engine: BPP710, Not for EGR
