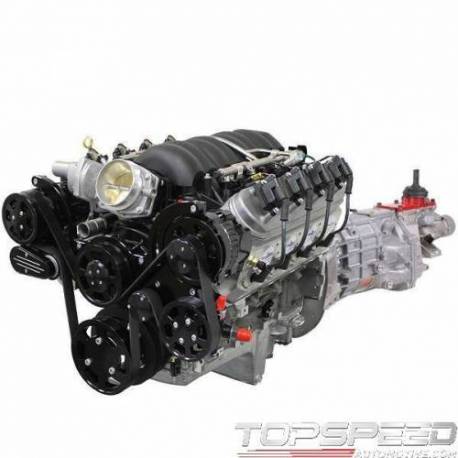

6.2L LS3 Paired with Six Speed Tremec Transmission

LC compatible 376 cubic inch
BluePrint Engines Builder Series 376CI Crate Engine with T56 Manual Transmission
- GM LS3 Style
- Aluminum Heads
- Roller Cam
- 6.2L
- Dressed Longblock with Black Pulley Kit

This engine will be dyno tested before it ships to you at no additional charge.


HP & Torque: 530 HP / 495 FT LBS
Compression Ratio: 10.7:1
Aluminum Heads
Hydraulic Roller Cam
Nodular Iron Crankshaft
Hypereutectic Pistons

BLOCK:
New GM Aluminum 6.2L block
OEM Block Machined in the USA!
6-Bolt Main
1-Piece Rear Main Seal

ROTATING ASSEMBLY:
Nodular Iron crankshaft
3.622in. Stroke
6.098in. connecting rods w/ 150,000 psi bolts
Hypereutectic Pistons
Internally Balanced

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -PS8015
72cc chamber
2.165in. intake/1.600in. exhaust valves
259cc intake/102cc exhaust runners

CAM SPECS:
Cam Type: Roller Cam
.612 Intake .585 Exhaust
225 Intake / 238 Exhaust duration
@ .050 - 113 degree lobe separation, 110 ICL

ALSO INCLUDES:
Complete ECU, Harness, and DBW Pedal Kit
GM Musclecar Swap Oil Pan
90mm DBW Throttle Body
Loaded Intake Manifold
Fuel Injectors and Rail
Coil Packs
Spark Plugs and Wires
Waterpump
Harmonic Balancer
Installed Complete Black front accessory Drive. WP, Alt, P/S, A/C, all belts and pulleys.
ASSEMBLED W/ COMPLETE T56 SIX SPEED TRANS PACKAGE:

Includes the following:
McLeod Super Steel Pro dual disk clutch
Steel bell housing
Billet flywheel
Engine guard
Starter

First Gear Ration: 2.66:1
Second Gear Ratio: 1.78:1
Third Gear Ration: 1.30:1
Fourth Gear Ration: 1.00:1
Fifth Gear Ration: 0.80:1
Sixth Gear Ration: 0.63:1

NOTES:
BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the above ECU / tuning.

Engine/Trans Package Ships assembled
Pictured engine is custom painted for additional cost.
Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: BLS376KBT56
Fuel Delivery Type: Fuel Injection
Spark Plug: Champion 3015
Spark Plug Gap: .040in.
Harmonic Balancer: Non Weighted
Flexplate/Flywheel: Non Weighted
Stall Converter: 2200+
Intake Manifold: N/A
Fuel Recommendation: 91 Octane
Timing (Initial/Total Advance):
Firing Order: 1,8,7,2,6,5,4,3
Notes: Recommended break in oil for your BluePrint Crate Engine: BPP710
Engine features a 58x reluctor wheel and 4x cam sensor. Knock sensor provision located on side of block. Cam sensor located in timing cover. utilizes EV6 type injector
