Description

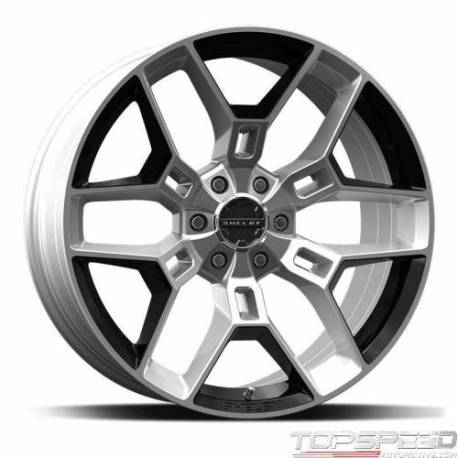

CS45 - 22 x 9.5 in. - 6 x 135 12mm Offset - Chrome Powder w/ Black Inserts
Fits 2005 & Up F150 Ford Trucks
It doesn't matter if you use your F150 for cruising the streets, hauling cargo, or ripping across the desert, the CS45 from Carroll Shelby Wheel Company will look right at home on your truck. Our first flow-formed 6-lug truck wheel, the CS45 is a precision-engineered blend of lightweight performance and rugged durability. Independently tested to exceed SAE J2530 standards and load-rated to 2500 lbs, this wheel can take any abuse you can throw at your truck. Available in three unique finish combinations: Silver w/Gloss Black inserts, Black w/Silver Inserts, and Solid Gloss Black, and offered in two sizes: 20 in.x 9 in. and 22 in.x 9.5 in.. The CS45 will look perfect on any truck - on the road and off it. ET 12; BS 5.70 in.; Hub 87.1; BP 6x135
The vehicle application data for this wheel is a general guideline only. Check bolt pattern, width, back-space (or offset), center bore, and brake caliper clearance to confirm that the desired wheel will fit your vehicle. Many vehicles have been modified & these changes may cause wheel fitment issues (i.e. axle swaps, disc brake / big brake conversions, suspension changes, and other modifications). ALWAYS verify the wheel actually fits on your vehicle BEFORE mounting tires. Wheels are non-returnable after tires have been mounted.
FEATURES:
-Flow-Formed Wheels - Stronger & Lighter than Traditional Cast Wheels
-Fits 2005 & Up F150's
-Choose from 3 Finishes & 2 Sizes
-Center Cap Included
-
CS45 - 22 x 9.5 in. - 6 x 135 12mm Offset - Chrome Powder w/ Black Inserts - Part number: CSW-CS45395512CP - for American Cars - delivery to the UK and the EU
Manufacturer part number: CS45-395512-CP - CS45 - 22 x 9.5 in. - 6 x 135 12mm Offset - Chrome Powder w/ Black Inserts wheel
Data sheet
- Finish
- Chrome Powder with Black
- Material
- Cast Aluminum
- Construction
- Flow Formed
- Width
- 9.5
- Width (in)
- 9.5
- Diameter (in)
- 22
- Product Type
- Flow Formed Wheel
- Weight
- 36
- Diameter
- 22
- Wheel Construction
- Flow Formed
- Center Bore Diameter (mm)
- 87.1
- Center Cap Included
- Yes
- Backspacing (in)
- 5.7
- Brand
- Carroll Shelby Wheels
- Offset (mm)
- 12
- Wheel Bolt Pattern (in)
- 6x5.31
- Wheel Bolt Pattern (mm)
- 6x135
- Wheel Series
- CS45
- Center Bore Diameter (in)
- 3.429
- Clear Coat Finish
- Yes
- Weight (LBS)
- 36
- Wheel Width
- 9.5
- Center Bore (mm)
- 87.1
Package dimensions
Width: 24.00 inch
Height: 24.00 inch
Depth: 12.50 inch
Weight: 36.00 lb
