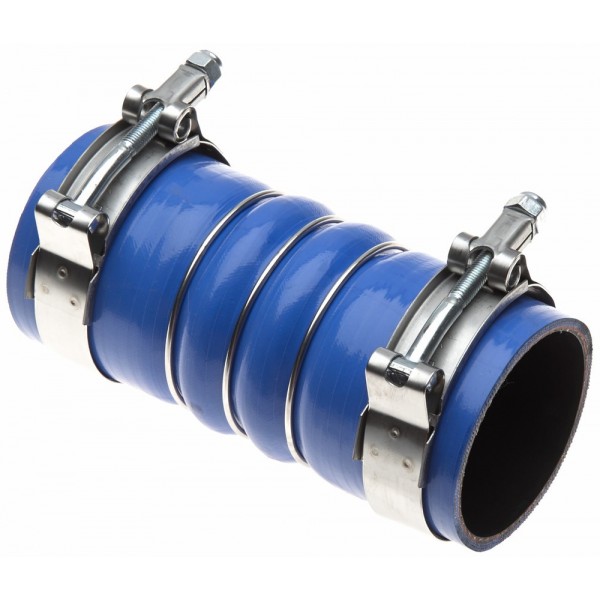

Turbocharger Hose Kit (Molded)
Availability:
Out-of-Stock
Description
GATES DRIVEN BY POSSIBILITY If it runs, we can help it run better. We're Gates, global leaders in power transmission and fluid power products and services. We serve customers across industries, bringing relentless innovation, and uncompromising quality to every product we make. Our reputation is built on over a century of experience, but everything we do is geared toward powering the future.
2016-11 Chevrolet, Silverado Series Pickup, V-8 6.6 L Diesel, Pipe To Pipe (Hot Side)
2016-11 Chevrolet, Silverado Series Pickup, V-8 6.6 L Diesel, Pipe To Pipe (Hot Side)
Turbocharger Hose Kit (Molded) - Part number: GAT-26265 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 26265 - Turbocharger Hose Kit (Molded) turbocharger-intercooler-hose-kit
Data sheet
- Contents
- 1 Turbocharger Hose, 2 T-Bolt Clamps
- OE Comparison Rating
- OE Improved
- Centerline Length (in)
- 6.25
- Centerline Length (mm)
- 159
- Inside Diameter 1 (in)
- 2.5
- Inside Diameter 1 (mm)
- 64
- Inside Diameter 2 (in)
- 2.5
- Inside Diameter 2 (mm)
- 64
- Clamp 1 - Clamping Range Min (in)
- 2.625
- Clamp 1 - Clamping Range Max (in)
- 2.9375
- Clamp 1 - Clamping Range Min (mm)
- 66.7
- Clamp 1 - Clamping Range Max (mm)
- 74.6
- Clamp 1 - Band Width (in)
- 0.75
- Clamp 1 - Band Width (mm)
- 19.1
- Clamp 1 - Bolt Type
- .25 in. - 28 Male Pipe Thread
- Clamp 1 - Nut Type
- .4375 in. Hex-Head
- Clamp 1 - Recommended Torque (in/lbs)
- 75
- Clamp 2 - Clamping Range Min (in)
- 2.625
- Clamp 2 - Clamping Range Max (in)
- 2.9375
- Clamp 2 - Clamping Range Min (mm)
- 66.7
- Clamp 2 - Clamping Range Max (mm)
- 74.6
- Clamp 2 - Band Width (in)
- 0.75
- Clamp 2 - Band Width (mm)
- 19.1
- Clamp 2 - Bolt Type
- .25 in. - 28 Male Pipe Thread
- Clamp 2 - Nut Type
- .4375 in. Hex-Head
- Clamp 2 - Recommended Torque (in/lbs)
- 75
Package dimensions
Width: 3.00 inch
Height: 3.00 inch
Depth: 7.00 inch
Weight: 0.78 lb
