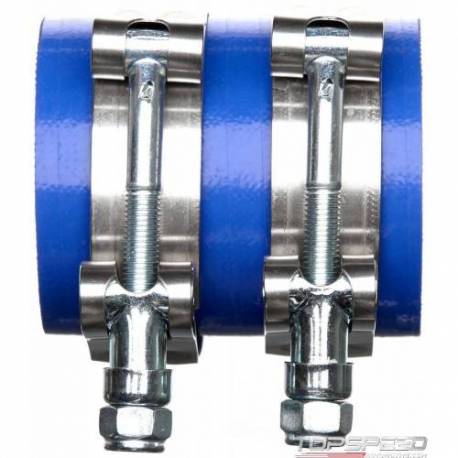

Molded Turbocharger Hose Kit
1997-1994 Ford, F Series Pickup, V-8 7.3 L Diesel, Turbo To Engine
Molded Turbocharger Hose Kit - Part number: GAT-26302 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 26302 - Molded Turbocharger Hose Kit turbocharger-intercooler-hose-kit
Data sheet
- Contents
- 1 Turbocharger Hose, 2 T-Bolt Clamps
- OE Comparison Rating
- OE Improved
- Centerline Length (in)
- 2.625
- Centerline Length (mm)
- 67
- Inside Diameter 1 (in)
- 1.875
- Inside Diameter 1 (mm)
- 48
- Inside Diameter 2 (in)
- 1.875
- Inside Diameter 2 (mm)
- 48
- Clamp 1 - Clamping Range Min (in)
- 2.13
- Clamp 1 - Clamping Range Max (in)
- 2.44
- Clamp 1 - Clamping Range Min (mm)
- 54.1
- Clamp 1 - Clamping Range Max (mm)
- 62
- Clamp 1 - Band Width (in)
- 0.75
- Clamp 1 - Band Width (mm)
- 19.1
- Clamp 1 - Bolt Type
- .25 in. - Stainless T-Bolt
- Clamp 1 - Nut Type
- .4375 in. Hex, Stainless w/ Nylon Insert
- Clamp 1 - Recommended Torque (in/lbs)
- 75
- Clamp 2 - Clamping Range Min (in)
- 2.13
- Clamp 2 - Clamping Range Max (in)
- 2.44
- Clamp 2 - Clamping Range Min (mm)
- 54.1
- Clamp 2 - Clamping Range Max (mm)
- 62
- Clamp 2 - Band Width (in)
- 0.75
- Clamp 2 - Band Width (mm)
- 19.1
- Clamp 2 - Bolt Type
- .25 in. - Stainless T-Bolt
- Clamp 2 - Nut Type
- .4375 in. Hex, Stainless w/ Nylon Insert
- Clamp 2 - Recommended Torque (in/lbs)
- 75
Package dimensions
Width: 6.00 inch
Height: 2.00 inch
Depth: 10.00 inch
Weight: 6.31 lb
