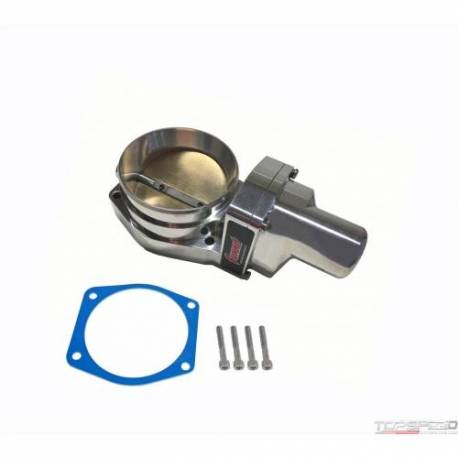

THROTTLE BODY DBW LS 103 POL

Manufacturer: Summit Racing
Part number: 227110P
MPN: 227110P
UPC: 190861229471
Availability: Out-of-Stock
£822.95
Tax included

Call to check: 0044 (0) 1933 225 564

Description

Throttle Body, Drive-By-Wire, Billet Aluminum, Polished, 103mm, Chevy, LS, Each

Summit Racing drive-by-wire throttle bodies are a perfect upgrade for any late model LS/LSX engine. They are precision machined from 6061 billet aluminum and come in multiple finishes. The unique blade design allows these throttle bodies to bolt right up to any factory or aftermarket LS/LSX intake manifold and they utilize the original late model GM 6-pin connector. The larger bore size allows for increased air flow which results in fast smooth acceleration across all RPM ranges. The proprietary electronics and stepper motor allow these throttle bodies to be used on both naturally aspirated and forced induction engines. Tuning is required for installation.

THROTTLE BODY DBW LS 103 POL - Part number: SUM-227110P - for American Cars - delivery to the UK and the EU

Manufacturer part number: 227110P - THROTTLE BODY DBW LS 103 POL throttle-body-bracket

Data sheet

Gaskets Included
Yes
Hardware Included
Yes
Quantity
Sold individually.
Throttle Body Finish
Polished
Throttle Body Material
Billet aluminum
Venturi Quantity
1
Injectors Included
No
Throttle Body Style
Multi-port injection, MPI
Venturi Diameter (mm)
103.00mm
Throttle Body Actuation
Drive-By-Wire
TPS Sensor Included
No
IAC Motor Included
No

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
