SC UPGRADE KIT 05-09 FORD MUSTANG STAGE II
Availability:
Out-of-Stock
Description

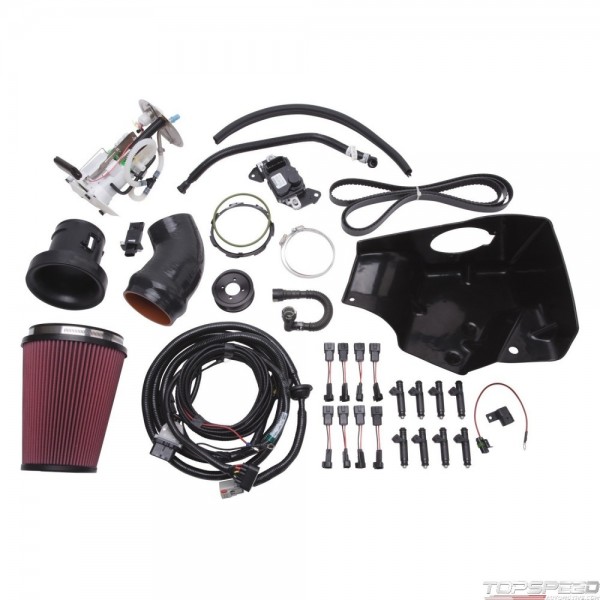

The Edelbrock Stage II Upgrade Kit part PN: 15802 allows customers using the 1580 supercharger (2005-2009 4.6L Mustang) to upgrade to stage 2. The Edelbrock Stage II Upgrade Kit part PN: 15802 includes a 3.25in. supercharger pulley, complete competition air intake system, GT500 fuel pump, injectors w/ adapters, Gatorback belt, and an updated calibration file. This upgrade is intended for racing/off road applications only and is not legal for sale on pollution controlled vehicles. Before a tune can be released complete the disclaimer form and send it back to us in order to receive the appropriate calibration file. This form can also be completed online.
Ford:Modular 3V:281 (4.6L)
Ford:Modular 3V:281 (4.6L)
SC UPGRADE KIT 05-09 FORD MUSTANG STAGE II - Part number: EDL-15802 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 15802 - SC UPGRADE KIT 05-09 FORD MUSTANG STAGE II supercharger-upgrade-kit
Data sheet
- Finish
- Black Powder Coated
- Mounting Hardware Included
- Yes
- Maximum Horsepower
- 529
- Gasket Or Seal Included
- Yes
- Fuel Injector Type
- 60 4U
- System Type
- Stage 2 - Street/Strip System
- Mounting Bracket Included
- Yes
- Universal Or Specific Fit
- Specific
- Housing Material
- Cast Aluminum
- Quantity
- Kit
- Air Filter Included
- Yes
- Calibration
- Yes
- Fuel Pump Included
- Yes
- Hose Included
- Yes
- Maximum Torque
- 494 85
- Outside Pulley Diameter
- 3.25 IN
- Pulley Belt Width
- 6-Rib
- Rotor Type
- Eaton TVS 2300
- Tensioner Included
- No
- Pulley Groove Quantity
- 6-Rib
- Pulley Color
- Black Anodized
- Pulley Material
- Aluminum
Package dimensions
Width: 13.00 inch
Height: 14.75 inch
Depth: 23.50 inch
Weight: 17.80 lb
