Edelbrock supercharger PN: 15812 19-20 F150
Availability:
Out-of-Stock
Description

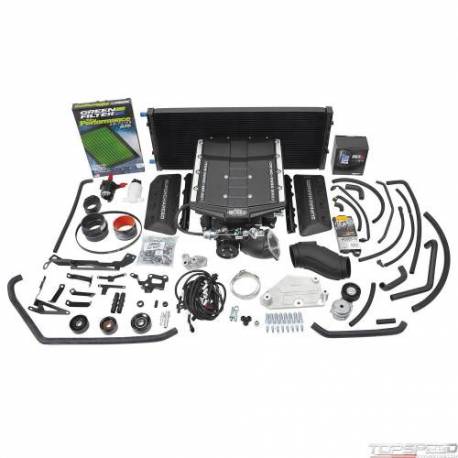

The Edelbrock Supercharger System part PN: 15812 is designed for use on a 2019-2020 Ford F150 with Gen III DI/PI 5.0L Coyote engine and 10-Speed automatic transmission. The heart of this system is the high-efficiency Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. The system also features an integrated bypass valve to help eliminate parasitic loss under light throttle, improving fuel mileage potential. The front drive, front inlet configuration results in a shorter, less restrictive intake path for improved airflow without the need for a power-robbing jackshaft. Keeping the air cool is a high-capacity, Dual-Pass 3-Core (DP3C) air-to-water intercooler and duel pass front-mount heat exchanger. The Edelbrock PN: 15812 system is 50-state emissions legal and provides the best combination of performance and reliability for your F150 whether you plan to tow a trailer, haul heavy loads, or you just want to feel your F-150 come to life! The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. This kit includes a tune for 91 or 93 octane fuels and makes approximately 601whp 468wtq using 93 octane backed by our FREE, industry-leading 3-year/36,000 mile powered train warranty where applicable.
Ford:Modular Coyote 4V:302 (5.0L)
Ford:Modular Coyote 4V:302 (5.0L)
Edelbrock supercharger PN: 15812 19-20 F150 - Part number: EDL-15812 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 15812 - Edelbrock supercharger PN: 15812 19-20 F150 supercharger-kit
Data sheet
- Finish
- Black Powder Coated
- Mounting Hardware Included
- Yes
- Maximum Horsepower
- 601RW
- Gasket Or Seal Included
- Yes
- System Type
- Stage 1 - Street System
- Mounting Bracket Included
- Yes
- Universal Or Specific Fit
- Specific
- Housing Material
- Cast Aluminum
- Quantity
- Kit
- Vehicle Model
- F-150
- CARB Executive Order Number
- D-215-115
- Calibration
- Yes
- Center Housing Cooling Type
- Intercooler
- Hose Included
- Yes
- Internal Step Up
- Yes
- Maximum Boost Pressure
- 13 PS
- Maximum Pressure Reading
- 13 PS
- Maximum Torque
- 468RW 85
- Oil Capacity
- 150 ML
- Outside Pulley Diameter
- 3.5 IN
- Pulley Belt Width
- 6-Rib
- Rotor Type
- Eaton TVS 2650
- Tensioner Included
- Yes
- Harmonic Balancer Diameter
- Stock
Package dimensions
Width: 48.00 inch
Height: 23.00 inch
Depth: 40.00 inch
Weight: 178.00 lb
