Description

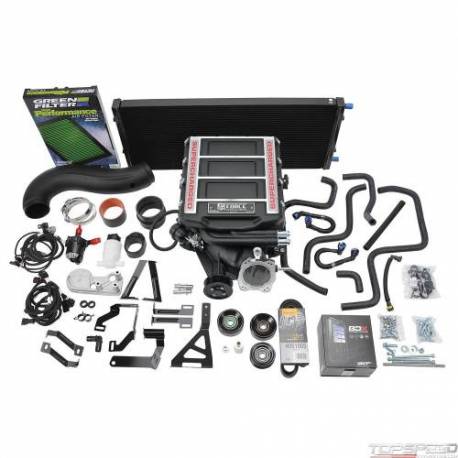

This new addition to Edelbrock's expanding line of superchargers is highlighted by significant improvements for Chevrolet/GMC/Cadillac 2015-2020 SUVs & 2014-2018 full size trucks with the GM 6.2L L86 V8 engine. This is a bolt-on performance kit that is emissions legal in all 50 states and produces 576 horsepower with 537 ft-lbs of torque at the rear wheel. This is the perfect power adder whether you plan to tow a trailer, haul heavier loads, or you just want to feel your truck/SUV come to life without sacrificing daily drivability! The new Edelbrock supercharger Kit PN: 15664 for Chevy/GMC/Cadillac trucks and SUVs is a complete redesign of our PN: 1565 and PN: 1566 kits featuring an all-new manifold that now houses Eaton's biggest R2650 TVS rotors with 170-degree high-twist lobes, bigger bearings and beefier timing gears for unparalleled efficiency and reliability. The Edelbrock supercharger Kit for the 6.2L V8 fits under the stock hood with absolutely no cutting or modifications required. And if you're concerned about the effect on MPG, the increase in power comes with little to no loss in fuel economy thanks to the supercharger's integrated bypass valve that mitigates parasitic power loss during normal driving. This new kit is a true bolt-on that requires no additional modifications to the stock 6.2L engine. For those who want more power, the R2650 supercharger can support more than 1,000 horsepower at the flywheel with the right combination of parts. This Edelbrock supercharger features a self-contained lubrication system with a 100,000-mile service interval with a high-capacity Dual-Pass 3-Core (DP3C) integrated intercooler and comes finished in a durable black powder-coating that blends nicely with the engine. Each kit includes a complete set of preformed hoses, hardware and a full-color manual that provides clear step-by-step instructions for ease of installation. This system is designed and manufactured in the USA and is covered by a free 3-yeear/36,000-mile warranty.
Chevrolet:Small-Block Gen V LT1:376 (6.2L)
Edelbrock supercharger PN: 15664 - Part number: EDL-15664 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 15664 - Edelbrock supercharger PN: 15664 supercharger-kit
Data sheet
- Finish
- Black Powder Coated
- Mounting Hardware Included
- Yes
- Maximum Horsepower
- 526RW
- Gasket Or Seal Included
- Yes
- System Type
- Stage 1 - Street System
- Mounting Bracket Included
- Yes
- Universal Or Specific Fit
- Specific
- Housing Material
- Cast Aluminum
- Quantity
- Kit
- Vehicle Model
- Yukon Denali XL
- CARB Executive Order Number
- D-215-117
- Air Filter Included
- Yes
- Calibration
- Yes
- Center Housing Cooling Type
- Intercooler
- Hose Included
- Yes
- Internal Step Up
- Yes
- Maximum Boost Pressure
- 12 PS
- Maximum Pressure Reading
- 12 PS
- Maximum Torque
- 537RW 85
- Oil Capacity
- 150 ML
- Outside Pulley Diameter
- 3.5 IN
- Pulley Belt Width
- 6-Rib
- Rotor Type
- Eaton TVS 2650
- Harmonic Balancer Diameter
- 7.4 IN
Package dimensions
Width: 19.31 inch
Height: 9.50 inch
Depth: 25.06 inch
Weight: 107.00 lb
