SC ASSY 03-06 GM TRUCK, 07 GM TRUCK CLASSIC GMT800 CHASSIS GEN III LS CATHEDRAL
Availability:
Out-of-Stock
Description

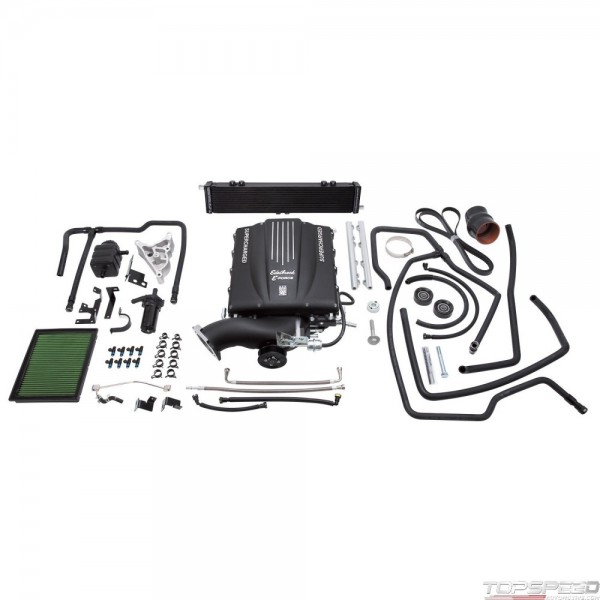

The Edelbrock supercharger Stage 1 Street system part PN: 15770 for 2003-06 Silverado and Sierra 1500 and 2007 Sierra Classic increases the performance of your 6.0L Gen III engine to 364 horsepower and 397 ft-lbs of torque at the rear wheels, when used with Edelbrock tune (kit supplied without a programmer). The Edelbrock PN: 15770 Supercharger also works with the 4.8L & 5.3L Gen III engines, HP & Torque numbers will vary. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger., HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. The PN: 15770 system increases the performance of your 4.8L Gen III engine to 339 horsepower and 359 ft-lbs of torque and for the 5.3L Gen III engine increases to 339 horsepower and 359 ft-lbs of torque at the rear wheels, when used with Edelbrock tune (kit supplied without a programmer).
Chevrolet:Small-Block LC9:325 (5.3L),Chevrolet:Small-Block LH8:325 (5.3L),Chevrolet:Small-Block LMF:325 (5.3L),Chevrolet:Small-Block LMG:325 (5.3L),Chevrolet:Small-Block LY5:325 (5.3L),Chevrolet:Small-Block Gen III LM7:325 (5.3L),Chevrolet:Small-Block Gen III LR4:293 (4.8L),Chevrolet:Small-Block Gen III LS1:346 (5.7L),Chevrolet:Small-Block Gen III LS2:364 (6.0L),Chevrolet:Small-Block Gen IV LMF:325 (5.3L),Chevrolet:Small-Block Gen IV LY5:325 (5.3L)
Chevrolet:Small-Block LC9:325 (5.3L),Chevrolet:Small-Block LH8:325 (5.3L),Chevrolet:Small-Block LMF:325 (5.3L),Chevrolet:Small-Block LMG:325 (5.3L),Chevrolet:Small-Block LY5:325 (5.3L),Chevrolet:Small-Block Gen III LM7:325 (5.3L),Chevrolet:Small-Block Gen III LR4:293 (4.8L),Chevrolet:Small-Block Gen III LS1:346 (5.7L),Chevrolet:Small-Block Gen III LS2:364 (6.0L),Chevrolet:Small-Block Gen IV LMF:325 (5.3L),Chevrolet:Small-Block Gen IV LY5:325 (5.3L)
SC ASSY 03-06 GM TRUCK, 07 GM TRUCK CLASSIC GMT800 CHASSIS GEN III LS CATHEDRAL - Part number: EDL-15770 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 15770 - SC ASSY 03-06 GM TRUCK, 07 GM TRUCK CLASSIC GMT800 CHASSIS GEN III LS CATHEDRAL supercharger-kit
Data sheet
- Finish
- Black Powder Coated
- Mounting Hardware Included
- Yes
- Gasket Or Seal Included
- Yes
- Fuel Injector Type
- 42 4U
- System Type
- Stage 1 - Street System
- Mounting Bracket Included
- Yes
- Universal Or Specific Fit
- Specific
- Housing Material
- Cast Aluminum
- Quantity
- Kit
- Vehicle Model
- Silverado
- CARB Executive Order Number
- D-215-110
- Air Filter Included
- Yes
- Calibration
- No
- Center Housing Cooling Type
- Intercooler
- Hose Included
- Yes
- Internal Step Up
- Yes
- Oil Capacity
- 150 ML
- Outside Pulley Diameter
- 4.125 IN
- Pulley Belt Width
- 6-Rib
- Rotor Type
- Eaton TVS 2300
- Harmonic Balancer Diameter
- 7.5 IN
Package dimensions
Width: 33.25 inch
Height: 25.75 inch
Depth: 41.75 inch
Weight: 177.00 lb
