SC ASSY 05-10ft. CHRYSLER 6.1L HEMI V8, LX/LC
Availability:
Out-of-Stock
Description

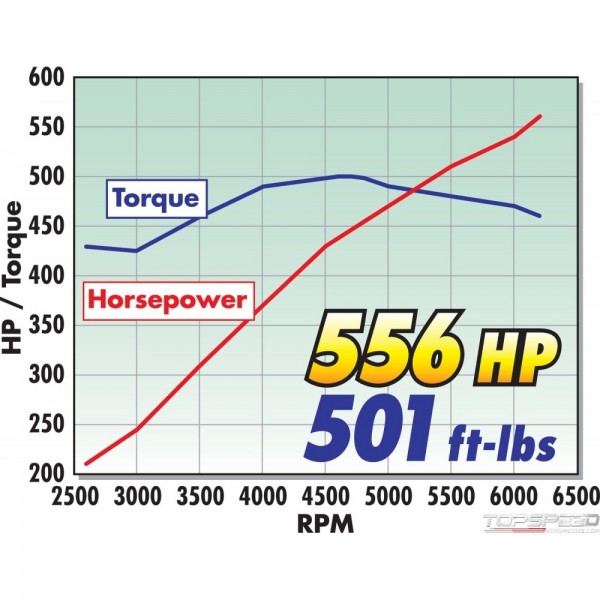

The Edelbrock Supercharger System part PN: 1536 is designed for your 2005-10 6.1L HEMI Chrysler 300, Dodge Charger or Challenger producing 556 horsepower and 501 ft-lbs of torque at the flywheel. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.
Chrysler:Gen III HEMI:370 (6.1L)
Chrysler:Gen III HEMI:370 (6.1L)
SC ASSY 05-10ft. CHRYSLER 6.1L HEMI V8, LX/LC - Part number: EDL-1536 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 1536 - SC ASSY 05-10ft. CHRYSLER 6.1L HEMI V8, LX/LC supercharger-kit
Data sheet
- Finish
- Black Powder Coated
- Mounting Hardware Included
- Yes
- Maximum Horsepower
- 556
- Gasket Or Seal Included
- Yes
- Fuel Injector Type
- 46 4U
- System Type
- Stage 1 - Street System
- Mounting Bracket Included
- Yes
- Universal Or Specific Fit
- Specific
- Housing Material
- Cast Aluminum
- Quantity
- Kit
- Vehicle Model
- Charger
- CARB Executive Order Number
- D-215-89
- Air Filter Included
- Yes
- Calibration
- Yes
- Center Housing Cooling Type
- Intercooler
- Hose Included
- Yes
- Internal Step Up
- Yes
- Maximum Boost Pressure
- 6 ps
- Maximum Pressure Reading
- 6 ps
- Maximum Torque
- 501 85
- Oil Capacity
- 150 ML
- Outside Pulley Diameter
- 3.875 IN
- Pulley Belt Width
- 6-Rib
- Rotor Type
- Eaton TVS 2300
- Tensioner Included
- Yes
- Harmonic Balancer Diameter
- 7.5 IN
Package dimensions
Width: 44.00 inch
Height: 32.00 inch
Depth: 44.00 inch
Weight: 198.00 lb
