SC ASSY 05-07 CORVETTE BASE MODEL 550 HP
Availability:
Out-of-Stock
Description

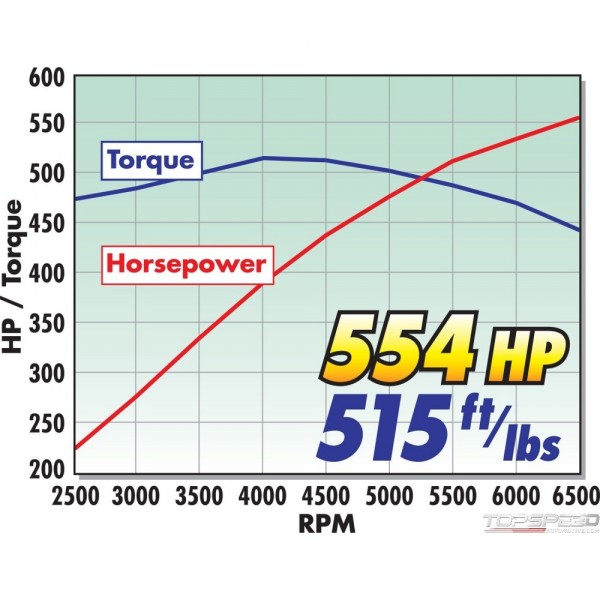

The Edelbrock supercharger Stage 1 Street system part PN: 1593 for 2005-07 Chevy Corvette increases the performance of your LS2 engine to 554 horsepower and 515 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger., The Edelbrock PN: 1593 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Chevrolet:Small-Block Gen IV LS3:376 (6.2L)
Chevrolet:Small-Block Gen IV LS3:376 (6.2L)
SC ASSY 05-07 CORVETTE BASE MODEL 550 HP - Part number: EDL-1593 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 1593 - SC ASSY 05-07 CORVETTE BASE MODEL 550 HP supercharger-kit
Data sheet
- Finish
- Black Powder Coated
- Mounting Hardware Included
- Yes
- Maximum Horsepower
- 554
- Gasket Or Seal Included
- Yes
- Fuel Injector Type
- 52 4U
- System Type
- Stage 1 - Street System
- Mounting Bracket Included
- Yes
- Universal Or Specific Fit
- Specific
- Housing Material
- Cast Aluminum
- Quantity
- Kit
- Vehicle Model
- Corvette
- CARB Executive Order Number
- D-215-89
- Air Filter Included
- Yes
- Calibration
- Yes
- Center Housing Cooling Type
- Intercooler
- Hose Included
- Yes
- Internal Step Up
- Yes
- Maximum Boost Pressure
- 5.5 PS
- Maximum Pressure Reading
- 5.5 PS
- Maximum Torque
- 515 85
- Oil Capacity
- 150 ML
- Outside Pulley Diameter
- 3.875 IN
- Pulley Belt Width
- 6-Rib
- Rotor Type
- Eaton TVS 2300
- Tensioner Included
- Yes
- Harmonic Balancer Diameter
- 7.5 IN
Package dimensions
Width: 33.50 inch
Height: 18.00 inch
Depth: 42.00 inch
Weight: 164.00 lb
