SC CORVETTE 2014 6.2L LT1 DIRECT INJECTION V8 DRY SUMP
Availability:
Last items in stock
Qty: 1, Delivery time: 8 working days
Description

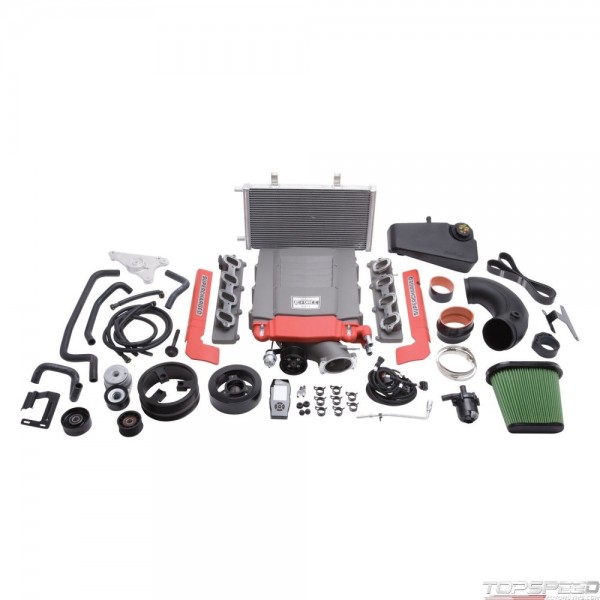

The Edelbrock supercharger Stage 1 Street System part PN: 1570 for 2014-19 Corvette Stingray Z51 increases the performance of your LT1 engine to 624 horsepower and 600 ft-lbs of torque to the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. , The Edelbrock PN: 1570 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Chevrolet:Small-Block Gen V LT1:376 (6.2L)
Chevrolet:Small-Block Gen V LT1:376 (6.2L)
SC CORVETTE 2014 6.2L LT1 DIRECT INJECTION V8 DRY SUMP - Part number: EDL-1570 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 1570 - SC CORVETTE 2014 6.2L LT1 DIRECT INJECTION V8 DRY SUMP supercharger-kit
Data sheet
- Finish
- Black Powder Coated
- Mounting Hardware Included
- Yes
- Maximum Horsepower
- 624
- Gasket Or Seal Included
- Yes
- System Type
- Stage 1 - Street System
- Mounting Bracket Included
- Yes
- Universal Or Specific Fit
- Specific
- Housing Material
- Cast Aluminum
- Quantity
- Kit
- Vehicle Model
- Corvette
- CARB Executive Order Number
- D-215-103
- Air Filter Included
- Yes
- Calibration
- Yes
- Center Housing Cooling Type
- Intercooler
- Hose Included
- Yes
- Internal Step Up
- Yes
- Maximum Boost Pressure
- 5.5 PS
- Maximum Pressure Reading
- 5.5 PS
- Maximum Torque
- 600 85
- Oil Capacity
- 150 ML
- Outside Pulley Diameter
- 3.5 IN
- Pulley Belt Width
- 10-Rib
- Rotor Type
- Eaton TVS 2300
- Tensioner Included
- Yes
- Harmonic Balancer Diameter
- 7.5 IN
Package dimensions
Width: 32.56 inch
Height: 18.12 inch
Depth: 41.31 inch
Weight: 164.00 lb
