SC R2650 2015-17 FORD FI50 5.0L V8 ENGINES
Availability:
Out-of-Stock
Description

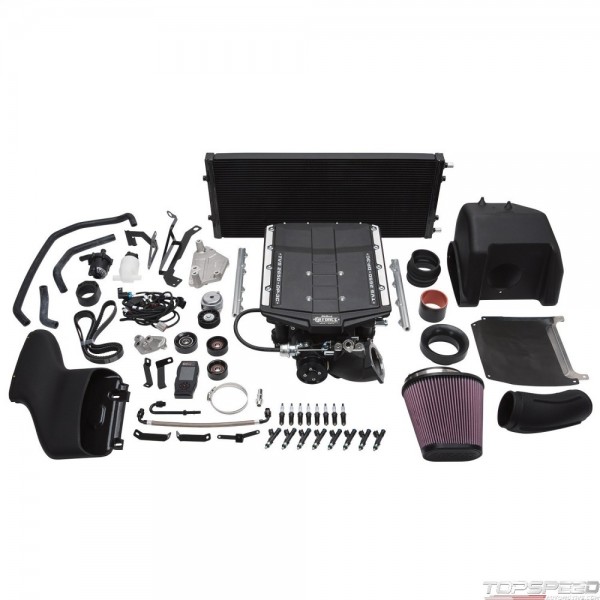

The Edelbrock supercharger Stage 1 Street System part PN: 1557 for 2015-17 Ford F-150 increases the performance of your 5.0L 4V engine to 533 horsepower and 482 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock PN: 1557 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Ford:Modular Coyote 4V:302 (5.0L)
Ford:Modular Coyote 4V:302 (5.0L)
SC R2650 2015-17 FORD FI50 5.0L V8 ENGINES - Part number: EDL-1557 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 1557 - SC R2650 2015-17 FORD FI50 5.0L V8 ENGINES supercharger-kit
Data sheet
- Finish
- Black Powder Coated
- Mounting Hardware Included
- Yes
- Maximum Horsepower
- 533RW
- Gasket Or Seal Included
- Yes
- Fuel Injector Type
- 50 4U
- System Type
- Stage 1 - Street System
- Mounting Bracket Included
- Yes
- Universal Or Specific Fit
- Specific
- Housing Material
- Cast Aluminum
- Quantity
- Kit
- Vehicle Model
- F-150
- CARB Executive Order Number
- D-215-97
- Calibration
- Yes
- Center Housing Cooling Type
- Intercooler
- Hose Included
- Yes
- Internal Step Up
- Yes
- Maximum Boost Pressure
- 15.5 PS
- Maximum Pressure Reading
- 15.5 PS
- Maximum Torque
- 482RW 85
- Oil Capacity
- 150 ML
- Outside Pulley Diameter
- 3.5 IN
- Pulley Belt Width
- 6-Rib
- Rotor Type
- Eaton TVS 2650
- Harmonic Balancer Diameter
- Stock
Package dimensions
Width: 15.00 inch
Height: 15.00 inch
Depth: 28.00 inch
Weight: 82.00 lb
