SC JEEP WRANGLER 2012-15 3.6L V6 PENTASTAR NO TUNER
Availability:
Out-of-Stock
Description

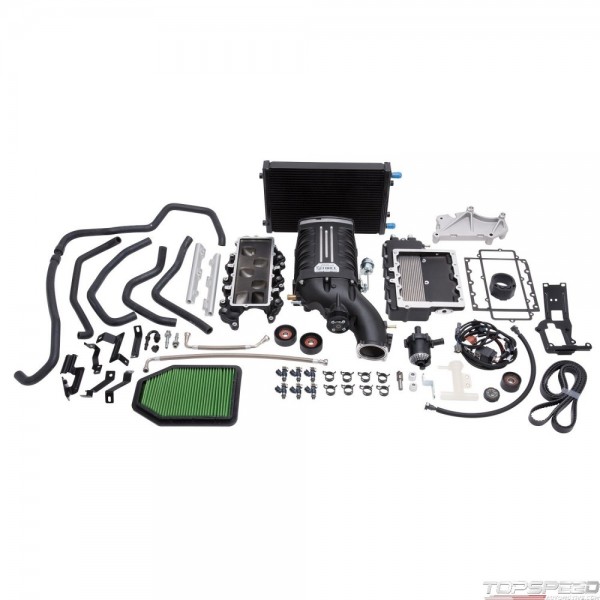

The Edelbrock Supercharger System Without Tuner PN: 15270 is designed exclusively for the 2012-18 Jeep Wrangler JK featuring a unique design with minimal components that makes it possible to fit under the stock hood with no cutting or body modifications. At the core of this system is the Eaton Gen VI 1320 TVS rotating assembly with a four-lobe design and 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. Horsepower output is 317 at the wheel with 277 ft-lbs of RWTQ (manual transmission). This supercharger has an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. This system PN: 15270 fits 2012-18 JK models but does not include the hand-held programmer or calibration. Complete systems with programmer and calibration are available under part number 1527 for the 2012-14 Jeep Wrangler, and part number 1528 for the 2015-18 Jeep Wrangler.
Jeep:Pentastar V6:220 (3.6L)
Jeep:Pentastar V6:220 (3.6L)
SC JEEP WRANGLER 2012-15 3.6L V6 PENTASTAR NO TUNER - Part number: EDL-15270 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 15270 - SC JEEP WRANGLER 2012-15 3.6L V6 PENTASTAR NO TUNER supercharger-kit
Data sheet
- Finish
- Black Powder Coated
- Mounting Hardware Included
- Yes
- Gasket Or Seal Included
- Yes
- Fuel Injector Type
- 42 4U
- System Type
- Stage 1 - Street System
- Mounting Bracket Included
- Yes
- Universal Or Specific Fit
- Specific
- Housing Material
- Cast Aluminum
- Quantity
- Kit
- Vehicle Model
- Wrangler
- CARB Executive Order Number
- D-215-118
- Air Filter Included
- Yes
- Calibration
- No
- Center Housing Cooling Type
- Intercooler
- Hose Included
- Yes
- Internal Step Up
- Yes
- Oil Capacity
- 125 ML
- Outside Pulley Diameter
- 2.625 IN
- Pulley Belt Width
- 6-Rib
- Rotor Type
- Eaton TVS 1320
- Harmonic Balancer Diameter
- 6.1 IN
Package dimensions
Width: 26.25 inch
Height: 17.56 inch
Depth: 33.38 inch
Weight: 89.00 lb
