SC JEEP WRANGLER 2012-14 3.6L V6 PENTASTAR
Availability:
Qty: 10, Delivery time: 8 working days
Description

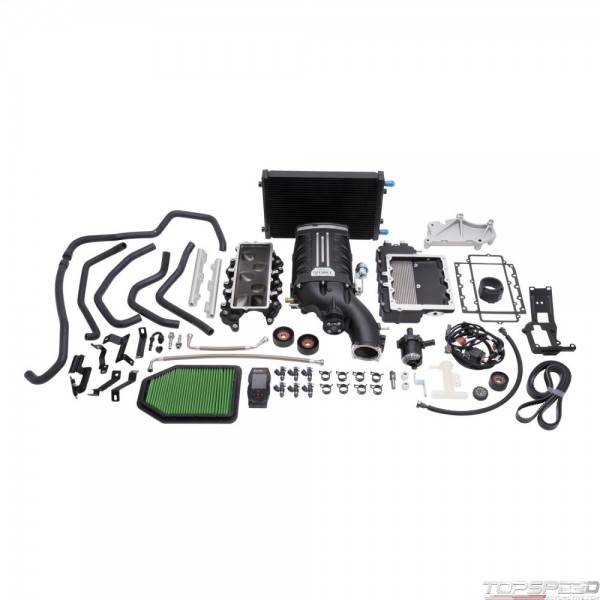

The Edelbrock Supercharger System PN: 1527 for your 2012-14 Jeep Wrangler delivers 317 RWHP and 277 RWTQ for a manual and 303 RWHP and 262 RWTQ for an automatic. This Supercharger is exclusively for the Pentastar 3.6L V6 engine with a unique design and minimal components that makes it possible to fit under the stock hood. The core of each system is the Eaton Gen VI 1320 TVS rotating assembly with a four-lobe design having 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.
Jeep:Pentastar V6:220 (3.6L)
Jeep:Pentastar V6:220 (3.6L)
SC JEEP WRANGLER 2012-14 3.6L V6 PENTASTAR - Part number: EDL-1527 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 1527 - SC JEEP WRANGLER 2012-14 3.6L V6 PENTASTAR supercharger-kit
Data sheet
- Finish
- Black Powder Coated
- Mounting Hardware Included
- Yes
- Maximum Horsepower
- 317RW (Manual Trans)/285RW (Auto Trans); With Stock Tires
- Gasket Or Seal Included
- Yes
- Fuel Injector Type
- 42 4U
- System Type
- Stage 1 - Street System
- Mounting Bracket Included
- Yes
- Universal Or Specific Fit
- Specific
- Housing Material
- Cast Aluminum
- Quantity
- Kit
- Vehicle Model
- Wrangler
- CARB Executive Order Number
- D-215-96
- Air Filter Included
- Yes
- Calibration
- Yes
- Center Housing Cooling Type
- Intercooler
- Hose Included
- Yes
- Internal Step Up
- Yes
- Maximum Boost Pressure
- 8 PS
- Maximum Pressure Reading
- 8 PS
- Maximum Torque
- 277RW (Manual Trans)/235RW (Auto Trans); With Stock Tires 85
- Oil Capacity
- 125 ML
- Outside Pulley Diameter
- 2.625 IN
- Pulley Belt Width
- 6-Rib
- Rotor Type
- Eaton TVS 1320
- Harmonic Balancer Diameter
- 6.1 IN
Package dimensions
Width: 26.25 inch
Height: 17.56 inch
Depth: 33.38 inch
Weight: 91.00 lb
