SC CHRYSLER 2015-17 R2650 DP3C 6.4L V8 HEMI LX/LC
Availability:
Out-of-Stock
Description

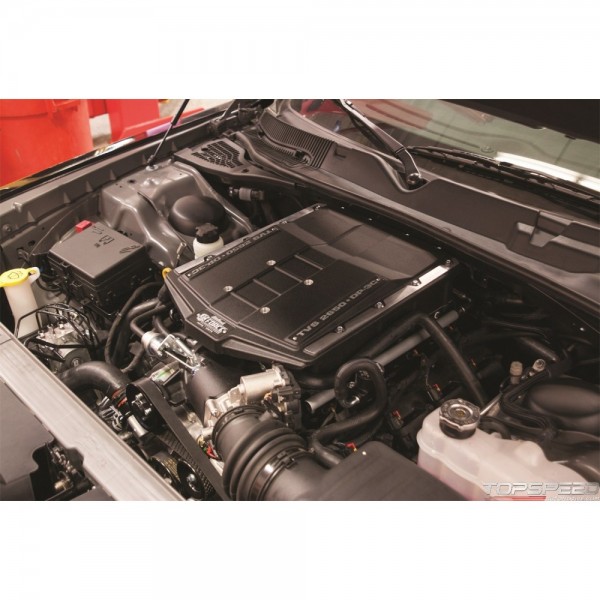

The Edelbrock Supercharger System part PN: 15172 is designed for use with 2015-18 Dodge Charger and Challenger 6.4L cars. It delivers 572 horsepower and 531 ft-lbs of torque at the rear wheels. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of this system is the Eaton Gen VI R2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. ALL 2015-Later Chrysler/Dodge Supercharger Systems will require the ECM to be sent in for modification.. HANDHELD PROGRAMMER NOT INCLUDED. This is an 8-10 day process/waiting period from the time they are received! Every step of the process is handled with next day shipping. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
Chrysler:Gen III HEMI:392 (6.4L)
Chrysler:Gen III HEMI:392 (6.4L)
SC CHRYSLER 2015-17 R2650 DP3C 6.4L V8 HEMI LX/LC - Part number: EDL-15172 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 15172 - SC CHRYSLER 2015-17 R2650 DP3C 6.4L V8 HEMI LX/LC supercharger-kit
Data sheet
- Finish
- Black Powder Coated
- Mounting Hardware Included
- Yes
- Maximum Horsepower
- 572RW (With 91 Octane)
- Gasket Or Seal Included
- Yes
- Fuel Injector Type
- 60 4U
- System Type
- Stage 1 - Street System
- Mounting Bracket Included
- Yes
- Universal Or Specific Fit
- Specific
- Housing Material
- Cast Aluminum
- Quantity
- Kit
- Vehicle Model
- Charger
- CARB Executive Order Number
- D-215-96
- Air Filter Included
- Yes
- Calibration
- Yes
- Center Housing Cooling Type
- Intercooler
- Fuel Pump Included
- Yes
- Hose Included
- Yes
- Internal Step Up
- Yes
- Maximum Boost Pressure
- 14 PS
- Maximum Pressure Reading
- 14 PS
- Maximum Torque
- 531RW (With 91 Octane) 85
- Oil Capacity
- 150 ML
- Outside Pulley Diameter
- 3.25 IN
- Pulley Belt Width
- 6-Rib
- Rotor Type
- Eaton TVS 2650
- Tensioner Included
- Yes
- Harmonic Balancer Diameter
- Stock
Package dimensions
Width: 0.00 inch
Height: 0.00 inch
Depth: 0.00 inch
Weight: 0.00 lb
