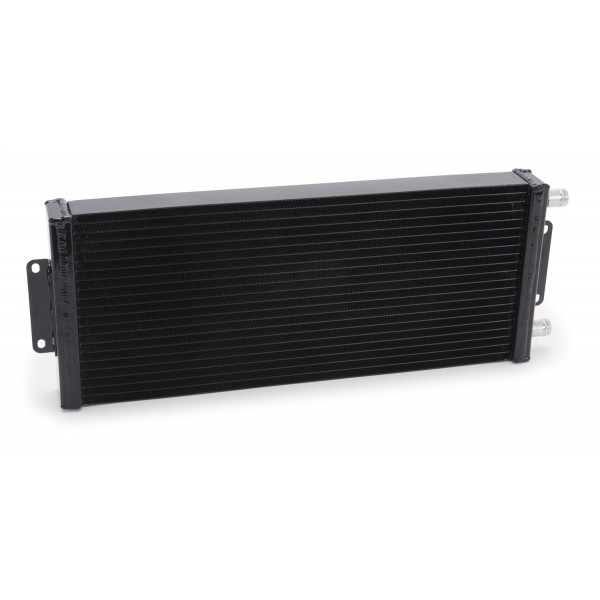

HEAT EXCHANGER SC UNIVERSAL 20in.x8in.x2in. DUAL PASS SINGLE ROW BLACK

Manufacturer: EDELBROCK
Part number: 15549
MPN: 15549
UPC: 085347155491
Availability:
£700.55
Tax included

Qty: 20, Delivery time: 8 working days

Description

Edelbrock heat exchanger part PN: 15549 is a dual pass/single row design and delivers 20,500 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting and includes brackets. Heat exchanger part PN: is a Dual Pass/Single Row Universal Heat Exchanger with the following dimensions (20in. W x 8in. H x 2in. D). Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications.

HEAT EXCHANGER SC UNIVERSAL 20in.x8in.x2in. DUAL PASS SINGLE ROW BLACK - Part number: EDL-15549 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 15549 - HEAT EXCHANGER SC UNIVERSAL 20in.x8in.x2in. DUAL PASS SINGLE ROW BLACK supercharger-heat-exchanger

Data sheet

Finish
Black Powder Coated
Material
Aluminum
Thickness
2 IN
Mounting Hardware Included
No
Construction
Dual Pass
Grade Type
Performance
Length
20 IN
Width
8 IN
Mounting Hole Quantity
4
Quantity
Sold Individually
BTU Rating
20500 btu/hr
Inlet Port Outside Diameter
0.75 IN
Inlet Port Quantity
1
Outlet Port Outside Diameter
0.75 IN
Outlet Port Quantity
1
Row Quantity
Single

Package dimensions

Width: 2.56 inch
Height: 23.50 inch
Depth: 11.31 inch
Weight: 4.30 lb
