HEAT EXCHANGER SC UNIVERSAL COMPACT 2 ROW

Manufacturer: EDELBROCK
Part number: 15406
MPN: 15406
UPC: 085347154067
Availability: Last items in stock
£840.55
Tax included

Qty: 1, Delivery time: 8 working days

Description

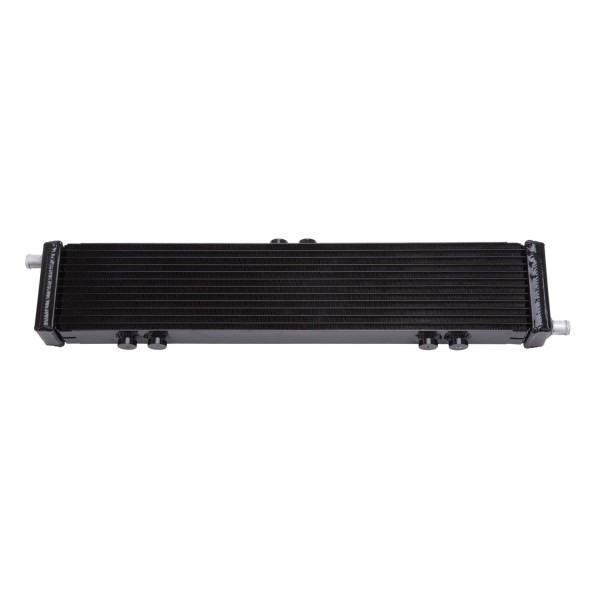

Edelbrock heat exchanger part PN: 15406 is a single pass/two row design and delivers 22,000 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting. Heat exchanger part PN: 15406 is a Single Pass/Two Row Universal Heat Exchanger with the following dimensions (26.5in. W x 5in. H x 2.62in. D) and 6 threaded bungs. Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications.

HEAT EXCHANGER SC UNIVERSAL COMPACT 2 ROW - Part number: EDL-15406 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 15406 - HEAT EXCHANGER SC UNIVERSAL COMPACT 2 ROW supercharger-heat-exchanger

Data sheet

Finish
Gloss Black Powder Coated
Material
Aluminum
Thickness
2.62 IN
Mounting Hardware Included
No
Construction
Single Pass
Grade Type
Performance
Length
26.58 IN
Width
5.2 IN
Mounting Hole Quantity
6
Mounting Hole Diameter
M6 x 1.0
Quantity
Sold Individually
BTU Rating
22000 btu/hr
Inlet Port Outside Diameter
0.75 IN
Inlet Port Quantity
1
Outlet Port Outside Diameter
0.75 IN
Outlet Port Quantity
1
Row Quantity
Two

Package dimensions

Width: 31.25 inch
Height: 7.00 inch
Depth: 23.25 inch
Weight: 9.40 lb
