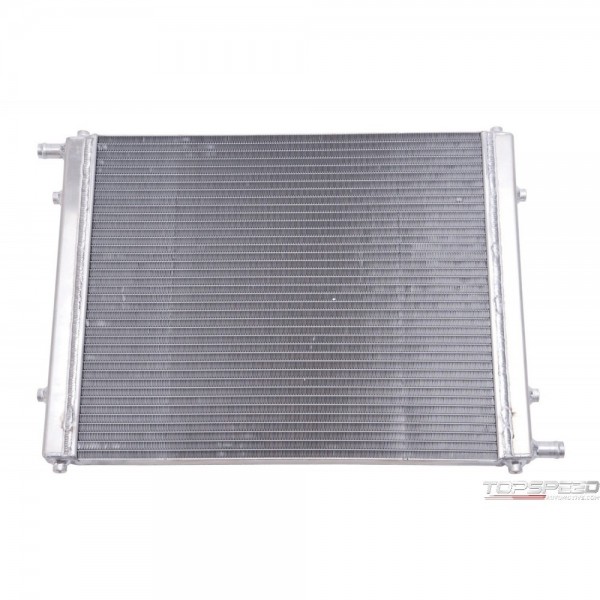

HEAT EXCHANGER SC UNIVERSAL FULL FACE

Manufacturer: EDELBROCK
Part number: 15405
MPN: 15405
UPC: 085347154050
Availability:
£1,081.55
Tax included

Qty: 12, Delivery time: 8 working days

Description

Edelbrock heat exchanger part PN: 15405 is a single pass/single row design and delivers 31,000 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting. Heat Exchanger part PN: 15405 is a Single Pass/Single Row Universal Heat Exchanger with the following dimensions (22in. W x 16.5in. H x 1.5in. D) and has 8 threaded bungs. Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications.

HEAT EXCHANGER SC UNIVERSAL FULL FACE - Part number: EDL-15405 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 15405 - HEAT EXCHANGER SC UNIVERSAL FULL FACE supercharger-heat-exchanger

Data sheet

Finish
Natural
Material
Aluminum
Thickness
1.5 IN
Mounting Hardware Included
No
Construction
Single Pass
Grade Type
Performance
Length
22 IN
Width
16.41 IN
Mounting Hole Quantity
8
Mounting Hole Diameter
M6 x 1.0
Quantity
Sold Individually
BTU Rating
31000 btu/hr
Inlet Port Outside Diameter
0.75 IN
Inlet Port Quantity
1
Outlet Port Outside Diameter
0.75 IN
Outlet Port Quantity
1
Row Quantity
Single

Package dimensions

Width: 23.75 inch
Height: 7.50 inch
Depth: 31.75 inch
Weight: 10.30 lb
