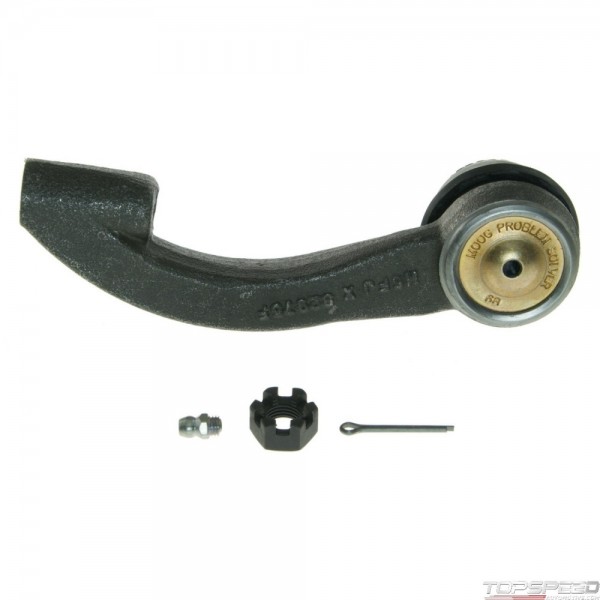

Steering Tie Rod End

Data sheet

Type

BENT

Feature 1

Problem Solver® powdered metal gusher bearing design enables grease to flow through the bearing to the stud for reduced friction and enhanced strength and stability.

Feature 2

Problem Solver® patented cover plate design allows for tighter tolerances vs traditional cover plate designs, providing a more durable and extended life part.

Feature 3

Exclusive cover plate protects against contaminants leaking into the bearing surface.

Feature 4

MOOG® engineered steel composition results in a stronger component.

Feature 5

Full ball metal stud provides 360 degrees of smooth, consistent, rotational movement resulting in more responsive steering.

Feature 6

Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.

Stud Diameter Dimension (bottom in.)

0.592

Rod Thread

M14-1.5

Stud Diameter Dimension (top in.)

0.490

Stud Thread

M12-1.25

Stud Center to End (in)

6.0

Rod Type (Male / Female)

FEMALE

Greasable

Yes

End 1 Thread Pitch

1.5 MM

End 2 Thread Pitch

1.25 MM

End 2 Thread Diameter

12.0 MM

Length Stud Center to End

6.000 IN

End 1 Thread Diameter

14.0 MM

End 1 Thread Direction

Clockwise

End 1 Gender

FEMALE

End 2 Gender

Female

Dust Boot Included

Yes
