• Out-of-Stock

2 PC EXTRA CAPACITY TEFLN LINE

Manufacturer: Summit Racing
Part number: XMAX10T
MPN: XMAX10T
UPC: 806990027986
Availability: Out-of-Stock
£0.00
Tax included

Call to check: 0044 (0) 1933 225 564

Description

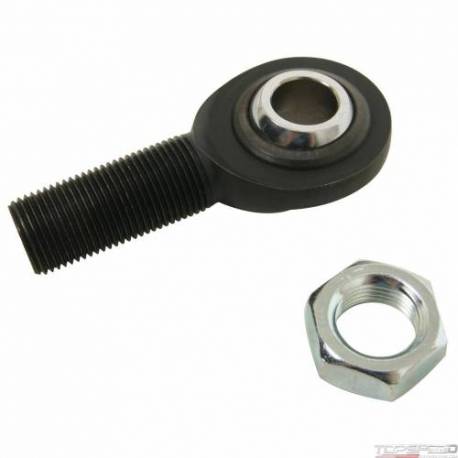

Summit Racing Black Max Rod End, 3/4 in.-16, Male Threads, 2-piece, Chromoly, 0.625 in. Bore, Each

Are you looking for tough rod ends? Look no further--Black Max rod ends are for you. In independent tests, these rod ends handled 90 percent more load than economy types. The pivoting balls are made from premium 52100 steel that receives a durable chrome plating to prevent wear. The bodies are made from heavy-duty, heat-treated chromoly steel for strength, and have a black oxide finish. So they not only look good, but they won't corrode, either. Jam nuts are included.

2 PC EXTRA CAPACITY TEFLN LINE - Part number: SUM-XMAX10T - for American Cars - delivery to the UK and the EU

Manufacturer part number: XMAX10T - 2 PC EXTRA CAPACITY TEFLN LINE steering-tie-rod-end

Data sheet

Quantity
Sold individually.
Thread Length
1.750 in.
Rod End Style
PTFE lined
Rod End Construction
2-piece
Rod End Attachment
Male threads
Rod End Thread Size
3/4 in.-16
Rod End Head Bore Size
0.625 in.
Jam Nut Included
Yes
Grease Fitting
No
Rod End Head Diameter
1.750 in.
Rod End Centerline Length
2.875 in.
Heat-Treated
Yes
Rod End Ball Width
0.750 in.
Rod End Misalign Angle
18 degrees
Rod End Static Load Capacity
26,400 lbs.
Rod End Material
Chromoly
Rod End Finish
Black oxide

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
