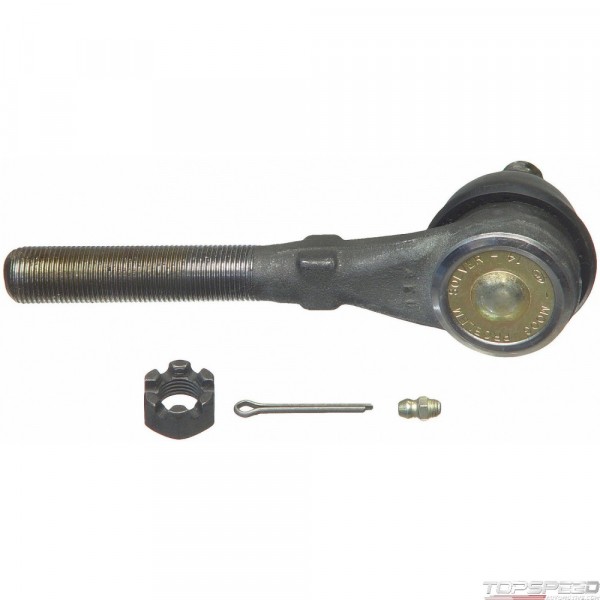

Steering Tie Rod End

Data sheet

Type

STRAIGHT

Feature 1

Problem Solver® powdered metal gusher bearing design enables grease to flow through the bearing to the stud for reduced friction and enhanced strength and stability.

Feature 2

Problem Solver® patented cover plate design allows for tighter tolerances vs traditional cover plate designs, providing a more durable and extended life part.

Feature 3

MOOG® engineered steel composition results in a stronger component. Full ball metal stud provides 360 degrees of smooth, consistent, rotational movement resulting in more responsive steering.

Feature 4

Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer.

Feature 5

Convenient easy access wrench flat allows for the use of a socket for easy installation and removal.

Feature 6

Sealed boot with a grease relief valve prevents contamination and releases excess grease away from brake components.

Stud Diameter Dimension (bottom in.)

0.703

Rod Thread

M18-1.5L

Stud Diameter Dimension (top in.)

0.613

Stud Thread

M14-1.5-6H RH

Stud Center to End (in)

5.90

Rod Type (Male / Female)

MALE

Greasable

Yes

End 1 Thread Pitch

1.5 MM

End 2 Thread Pitch

1.5 MM

End 2 Thread Diameter

14.0 MM

Length Stud Center to End

5.900 IN

End 1 Thread Diameter

18.0 MM

End 1 Thread Direction

Counterclockwise

End 1 Gender

MALE

End 2 Gender

Male

Dust Boot Included

Yes
