• Out-of-Stock

2PC CHROMEMOLY PTFE

Manufacturer: Summit Racing
Part number: MAXL12T
MPN: MAXL12T
UPC: 806990028655
Availability: Out-of-Stock
£59.95
Tax included

Call to check: 0044 (0) 1933 225 564

Description

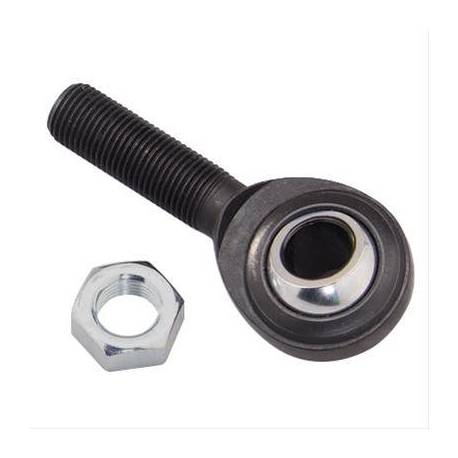

Rod End, 3/4 in.-16 Left Hand Male Thread, 3/4 in. Bore, Chromoly, with Jam Nut, Each

Are you looking for tough rod ends? Look no further--Black Max rod ends are for you. In independent tests, these rod ends handled 90 percent more load than economy types. The pivoting balls are made from premium 52100 steel that receives a durable chrome plating to prevent wear. The bodies are made from heavy-duty, heat-treated chromoly steel for strength, and have a black oxide finish. So they not only look good, but they won't corrode, either. Jam nuts are included.

2PC CHROMEMOLY PTFE - Part number: SUM-MAXL12T - for American Cars - delivery to the UK and the EU

Manufacturer part number: MAXL12T - 2PC CHROMEMOLY PTFE steering-tie-rod-end

Data sheet

Quantity
Sold individually.
Thread Length
1.750 in.
Rod End Style
PTFE lined
Rod End Construction
2-piece
Rod End Attachment
Male threads
Rod End Thread Size
3/4-16 LH in.
Rod End Head Bore Size
0.750 in.
Jam Nut Included
Yes
Grease Fitting
No
Rod End Head Diameter
1.750 in.
Rod End Centerline Length
2.875 in.
Heat-Treated
Yes
Rod End Ball Width
0.875 in.
Rod End Misalign Angle
18 degrees
Rod End Static Load Capacity
21,369 lbs.
Rod End Material
Chromoly
Rod End Finish
Black oxide

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
