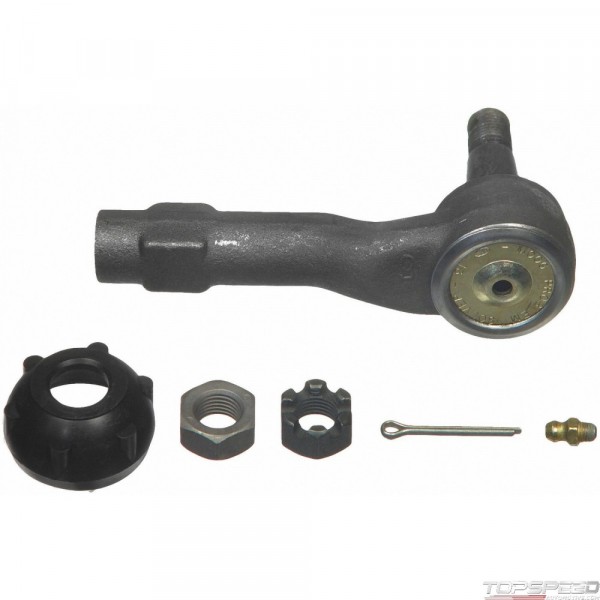

Steering Tie Rod End

Data sheet

Type

STRAIGHT

Feature 1

Problem Solver® powdered metal gusher bearing design enables grease to flow through the bearing to the stud for reduced friction and enhanced strength and stability.

Feature 2

Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer.

Feature 3

Problem Solver® patented cover plate design allows for tighter tolerances vs traditional cover plate designs, providing a more durable and extended life part.

Feature 4

Exclusive cover plate protects against contaminants leaking into the bearing surface.

Feature 5

Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.

Feature 6

Loose or worn chassis parts can lead to premature tire wear.

Stud Diameter Dimension (bottom in.)

0.703

Rod Thread

M14-1.5R

Stud Diameter Dimension (top in.)

0.594

Stud Thread

M14-1.5

Stud Center to End (in)

4.71

Rod Type (Male / Female)

FEMALE

End 1 Thread Pitch

1.5 MM

End 2 Thread Pitch

1.5 MM

End 2 Thread Diameter

14.0 MM

Length Stud Center to End

4.710 IN

End 1 Thread Diameter

14.0 MM

End 1 Thread Direction

Clockwise

End 1 Gender

FEMALE

End 2 Gender

Female
