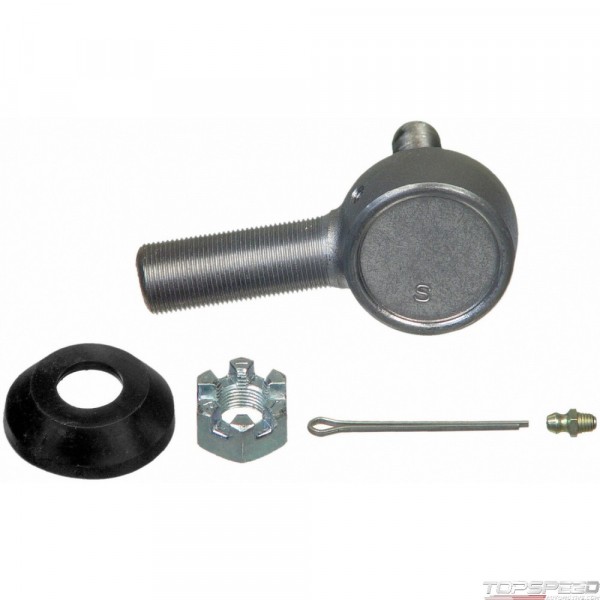

Steering Tie Rod End

Data sheet

Type

STRAIGHT

Feature 1

Problem Solver® powdered metal gusher bearing design enables grease to flow through the bearing to the stud for reduced friction and enhanced strength and stability.

Feature 2

Problem Solver® patented cover plate design allows for tighter tolerances vs traditional cover plate designs, providing a more durable and extended life part.

Feature 3

Exclusive cover plate protects against contaminants leaking into the bearing surface.

Feature 4

MOOG® engineered steel composition results in a stronger component.

Feature 5

Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.

Feature 6

Loose or worn chassis parts can lead to premature tire wear.

Stud Diameter Dimension (bottom in.)

0.776

Rod Thread

0.875-18L

Stud Diameter Dimension (top in.)

0.675

Stud Thread

5/8"-18"

Stud Center to End (in)

3.38

Rod Type (Male / Female)

MALE

Length Stud Center to End

3.380 IN

End 1 Thread Diameter

0.875 IN

End 1 Thread Direction

Counterclockwise

End 1 Gender

MALE

End 2 Gender

Male

End 1 Threads Per Inch

18

End 2 Threads Per Inch

18
