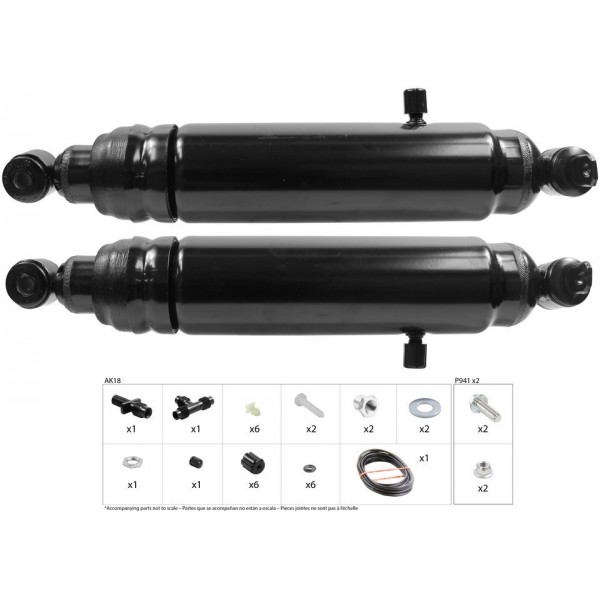

Monroe Max-Air Air Shock Absorber

Manufacturer: MONROE
Part number: MA776
MPN: MA776
UPC: 048598031617
Availability: Last items in stock
£216.95
Tax included

Qty: 1, Delivery time: 2 working days

Qty: 1, Delivery time: 7 working days

Description

The Max-Air® shock absorber is ideal for vehicles that haul heavy loads or tow trailers. Designed to maintain level vehicle height, they can be inflated or deflated as needed...from 20 psi to 150 psi with the vehicle loaded. Capacity is limited by vehicle suspension, tires and transmission. See vehicle owner's manual for details.

2001-1991 Ford Explorer Rear, 2005-2001 Ford Explorer Sport Trac Rear, 2001-1997 Mercury Mountaineer Rear, 1994-1991 Mazda Navajo Rear

Monroe Max-Air Air Shock Absorber - Part number: MON-MA776 - for American Cars - delivery to the UK and the EU

Manufacturer part number: MA776 - Monroe Max-Air Air Shock Absorber shock-absorber

Data sheet

Most Popular Make / Model
Ford Explorer
Most Popular Year
2002
Min Year Covered
1991
Max Year Covered
2005
Total Part VIO
1686659
Product Grade
Economy
Compressed Length
15.000 IN
Dust Shield
Yes
Extended Length
24.375 IN
Travel Length
9.375 IN
Parts Pack(s)
P00941
Compressed Bumper Stop
No
Extended Bumper Stop
Yes
Extended Hydraulic Lockout
No
Upper Mounting Code
XP7
Upper Mounting Description
Cross Pin Mount Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Lower Mounting Code
LS26
Lower Mounting Description
Loop Bushing & Sleeve Mount 12MM Sleeve ID X 1.1/2" Sleeve OAL
Dust Shield Material
Rubber

Package dimensions

Width: 7.75 inch
Height: 3.44 inch
Depth: 21.00 inch
Weight: 12.71 lb
