RADIATOR AL FO/MOP 26X19 3 PAS
Availability:
Out-of-Stock
Description

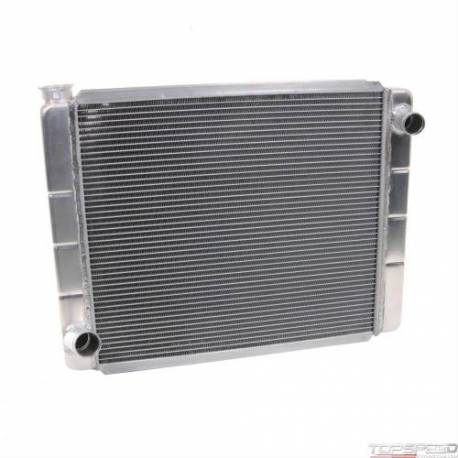

Radiator, Universal, Aluminum, Natural, 25.750 in. Wide, 19.0 in. High, 2.250 in. Thick, Triple Pass, Each
Need a budget-friendly radiator that can handle the extreme heat of hardcore drag and circle track racing? Check out Summit Racing universal fit triple-pass radiators! These affordable radiators are designed with a triple-pass system that cycles the coolant through the radiator three times before it re-circulates into the engine. This design delivers increased cooling above that of traditional single-pass radiators. Summit triple-pass radiators feature all-aluminum, furnace-brazed construction with a fully welded heavy-duty filler neck. There are no gaskets, seals, or epoxy to blow out to cost you valuable time and money! They're available for Ford and Chevy applications in a variety of widths. For dependable and efficient radiators that can take the heat of competition, you can count on Summit triple-pass radiators!
Need a budget-friendly radiator that can handle the extreme heat of hardcore drag and circle track racing? Check out Summit Racing universal fit triple-pass radiators! These affordable radiators are designed with a triple-pass system that cycles the coolant through the radiator three times before it re-circulates into the engine. This design delivers increased cooling above that of traditional single-pass radiators. Summit triple-pass radiators feature all-aluminum, furnace-brazed construction with a fully welded heavy-duty filler neck. There are no gaskets, seals, or epoxy to blow out to cost you valuable time and money! They're available for Ford and Chevy applications in a variety of widths. For dependable and efficient radiators that can take the heat of competition, you can count on Summit triple-pass radiators!
RADIATOR AL FO/MOP 26X19 3 PAS - Part number: SUM-3804253 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 380425-3 - RADIATOR AL FO/MOP 26X19 3 PAS radiator
Data sheet
- Notes
- Radiator does not have a drain petcock.
- Quantity
- Sold individually.
- Row Quantity
- 2
- Tube Size
- 1 in.
- Radiator Material
- Aluminum
- Radiator Style
- Crossflow
- Transmission Cooler
- No
- Inlet Location
- Upper passenger side
- Outlet Location
- Lower driver side
- Radiator Finish
- Natural
- Trans Cooler Adapter Fittings Included
- No
- Radiator Inlet Size
- 1.500 in.
- Radiator Outlet Size
- 1.750 in.
- Fan Included
- No
- Radiator Cap Included
- No
- Overall Thickness (in)
- 3.125 in.
- Overall Height (in.)
- 19.000 in.
- Core Height (in.)
- 18.125 in.
- Overall Width (in.)
- 26.000 in.
- Core Width (in.)
- 20.750 in.
- Core Thickness (in.)
- 2.250 in.
Package dimensions
Width: 50.00 inch
Height: 30.00 inch
Depth: 10.00 inch
Weight: 50.00 lb
