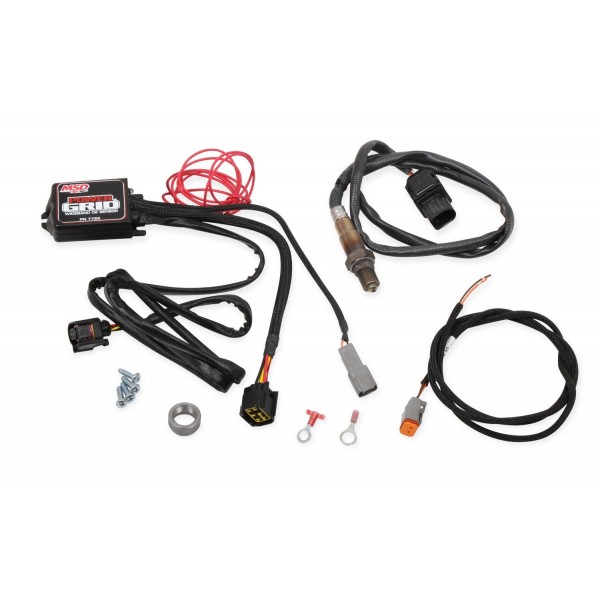

Wide Band O2 for Power Grid

Add valuable data logging capability to your Power Grid with the addition of the plug-n-play Wide Band O2 Module. Aside from providing O2 data to your Grid, the module also provides a 0-5V output to drive an air/fuel ratio gauge or provide signal to other data loggers. Multiple modules and sensors can be connected to a single Power Grid setup if desired. The completely sealed unit uses a Bosch 4.9 O2 sensor, is easy to set up and no free air calibration is required.

Wide Band O2 for Power Grid

FEATURES:
- Plug-N-Play w/MSD Power Grid
- Easy set-up! No free air calibration required
- Completely Sealed Unit For Durability In Race Environments
- Bosch 4.9 Oxygen Sensor
- 0-5V Output To Run An Air/Fuel Gauge or Data Logger
- Dual-color LED provides on board diagnostics
- Multiple Modules Can Be Used On A Single Power Grid
- Data logs air-fuel ratio and heater voltage
- Fuel Calibration Opt. for gas/methanol/ethanol/E85/propane/diesel
- Custom Fuel Calibration option can be programmed by user
