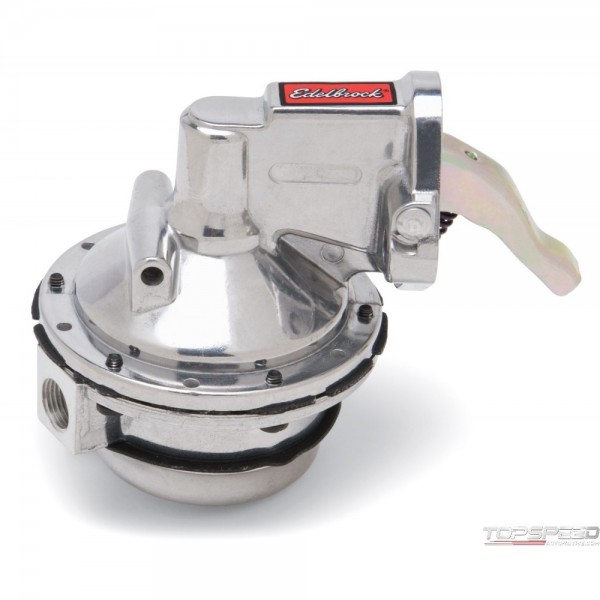

396-454 HI-PERF ST PUMP

Manufacturer: EDELBROCK
Part number: 1722
MPN: 1722
UPC: 085347017225
Availability:
£252.55
Tax included

Qty: 29, Delivery time: 8 working days

Description

Edelbrock part PN: 1722 Performer RPM Series fuel pump is for Big-Block Chevrolet designed for use with all Edelbrock carburetors used in Performer or Performer RPM applications. These high-performance's street Fuel Pumps feature a high quality three stage polished finish. The unique valve design improves flow quantity and quality, and will support engines up to 600 hp. High-volume, 3/8in. NPT inlet and outlet surpasses the capacity of conventional models. Produces 6 psi and does not require a regulator. Use with gasoline only. Clockable lower housing can be rotated in 60 Deg Increments for best inlet/outlet alignment.

Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)

396-454 HI-PERF ST PUMP - Part number: EDL-1722 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 1722 - 396-454 HI-PERF ST PUMP mechanical-fuel-pump

Data sheet

Fuel Type
Gas
Free Flow GPH
110
Inlet Quantity
1
Outlet Quantity
1
Mounting Hardware Included
Yes
Fuel Pump Type
Mechanical
Gasket Or Seal Included
Yes
Outlet Type
Female
Maximum Pressure
6.0 ps
Outlet Thread Diameter
0.675 IN
Connection Type
Female
Housing Material
Aluminum
Inlet Fitting Thread Size
3/8" NPT
Inlet Thread Diameter
0.675 IN
Outlet Fitting Thread Size
3/8" NPT
Pump Type
Mechanical

Package dimensions

Width: 4.50 inch
Height: 5.00 inch
Depth: 10.00 inch
Weight: 2.22 lb
