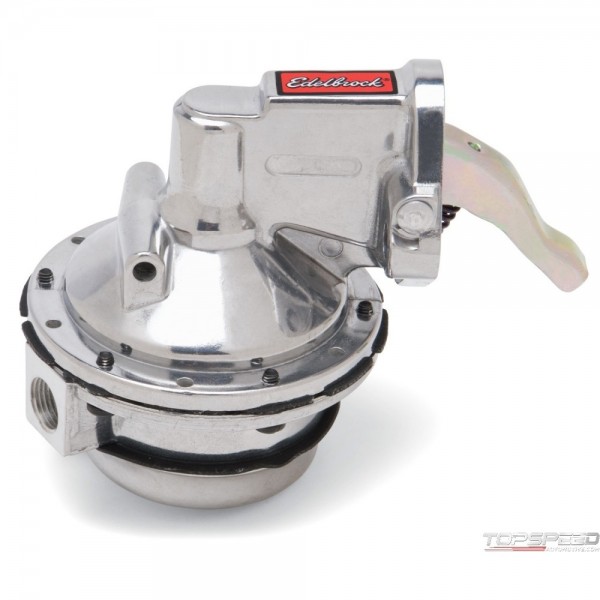

B/B HI-FLOW FUEL PUMP

Manufacturer: EDELBROCK
Part number: 1712
MPN: 1712
UPC: 085347017126
Availability:
£258.55
Tax included

Qty: 18, Delivery time: 8 working days

Description

Edelbrock part PN: 1712 Victor Series fuel pump is for Big-Block Chevrolet. The Edelbrock Victor Series fuel pump is a must for drag racing, circle track racing, street machines or any application that demands a high-volume fuel delivery, these fuel pumps feature a high quality three stage polished finish. High-volume 3/8in. NPT inlet and outlet orifices surpass the capacity of conventional models. Produces 10 psi and must be used with an external fuel pressure regulator such as our Fuel Pressure Regulator PN: 8190 or PN: 1727. For gasoline only. Clockable lower housing can be rotated in 60 Deg Increments for best inlet/outlet alignment.

Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)

B/B HI-FLOW FUEL PUMP - Part number: EDL-1712 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 1712 - B/B HI-FLOW FUEL PUMP mechanical-fuel-pump

Data sheet

Fuel Type
Gas
Free Flow GPH
130
Inlet Quantity
1
Outlet Quantity
1
Mounting Hardware Included
Yes
Fuel Pump Type
Mechanical
Gasket Or Seal Included
Yes
Outlet Type
Female
Maximum Pressure
10.0 ps
Outlet Thread Diameter
0.675 IN
Connection Type
Female
Housing Material
Aluminum
Inlet Fitting Thread Size
3/8" NPT
Inlet Thread Diameter
0.675 IN
Outlet Fitting Thread Size
3/8" NPT
Pump Type
Mechanical

Package dimensions

Width: 4.36 inch
Height: 4.63 inch
Depth: 9.63 inch
Weight: 2.15 lb
