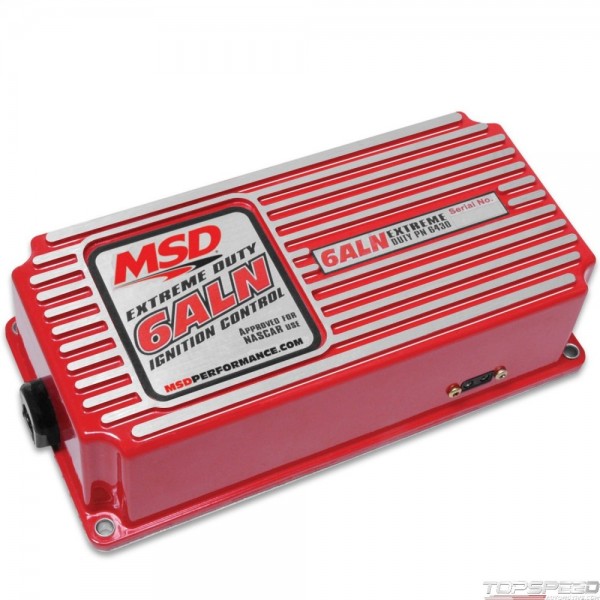

MSD 6ALN Ignition Control Extreme Duty

The MSD 6TN and MSD 6ALN were designed with NASCAR racing in mind. In fact, both of the capacitive discharge high power ignitions are NASCAR approved. The N series ignitions feature the mandatory 6-Pin weathertight connector to meet NASCAR's ignition wiring rule, 20-6.1. This special connector provides a tight, positive locka­ing connection with individual seals to keep dirt and moisture away from each connection. All of the MSD's primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminum housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. A special clear base plate is also installed for easy tech inspection. The 6TN is equipped with a special 4-pin connector that plugs directly into an MSD soft touch rev control, PN 8738, while the 6ALN has a built-in rev control.

MSD 6ALN; Ignition Control; Extreme Duty

FEATURES:
- Multiple spark; capacitive discharge ignition control
- Supplied w/3000/6000/7000/8000 Amp Rpm Modules
- Supplied w/Rubber Shock Mounts
- Programmable for 4/6/8 cyl. by cutting red/blue wire loops
- 110 Millijoules Per Spark Up To 15000 RPM
- 470 Primary Voltage Output To Coil
- Works on 12-18 volt electrical system
- Multiple sparks for 20 degrees of crankshaft rotation
- Built-In Soft Touch Rev Control Is Adjustable w/Rpm Modules
- Clear plastic base plate for easy tech inspection
- Circuit board is encased in a clear two part silicone elastomer
- 6-pin Weathertight Connector; Mandatory For NASCAR Use
