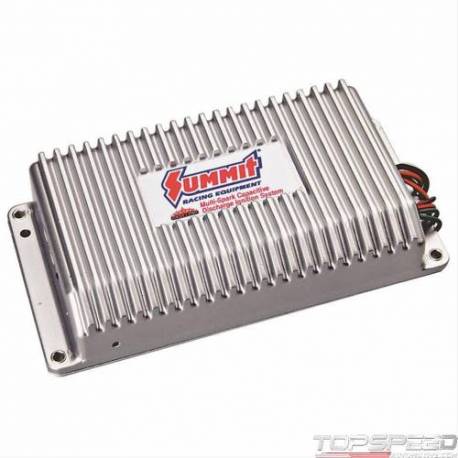

STREET CD BOX WITH REV LIMITER
Availability:
Out-of-Stock
Description
Ignition Box, Silver, Digital, Capacitive Discharge, Adjustable Rev Limiter, Each
Summit Racing multi-spark digital capacitive discharge ignition boxes use cutting-edge microprocessor controls to create hot, consistent sparks for performance throughout the powerband. These capacitive discharge systems create a powerful 100 mJ spark at full voltage, with multiple sparks below 3,000 rpm to improve starting ability, idle quality, and throttle response, while preventing plug fouling due to cylinder load-up. They have a 470V primary/45,000V secondary output, plus a built-in rev limiter-just use the rotary dials to set it anywhere from 2,000 to 9,900 rpm. The lightweight cast aluminum housing has a durable metallic silver powdercoat finish, and the ignition comes with direct plug-in connectors for most 2-wire distributors (including points and magnetic pickups), installation hardware, labeled wiring, optional Weather Pack connectors, optional vibration-resistant mounts, and detailed instructions.
Summit Racing multi-spark digital capacitive discharge ignition boxes use cutting-edge microprocessor controls to create hot, consistent sparks for performance throughout the powerband. These capacitive discharge systems create a powerful 100 mJ spark at full voltage, with multiple sparks below 3,000 rpm to improve starting ability, idle quality, and throttle response, while preventing plug fouling due to cylinder load-up. They have a 470V primary/45,000V secondary output, plus a built-in rev limiter-just use the rotary dials to set it anywhere from 2,000 to 9,900 rpm. The lightweight cast aluminum housing has a durable metallic silver powdercoat finish, and the ignition comes with direct plug-in connectors for most 2-wire distributors (including points and magnetic pickups), installation hardware, labeled wiring, optional Weather Pack connectors, optional vibration-resistant mounts, and detailed instructions.
STREET CD BOX WITH REV LIMITER - Part number: SUM-850610 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 850610 - STREET CD BOX WITH REV LIMITER ignition-coil
Data sheet
- Current Draw
- 1 amp per 1,000 rpm
- Height (in.)
- 1.700 in.
- Length (in.)
- 8.000 in.
- Notes
- Will not work with solid core wires.
- Width (in)
- 4.000 in.
- Quantity
- Sold individually.
- Ignition Box Output
- Capacitive discharge
- Circuitry
- Digital
- Rev Limiter
- Yes
- Timing Retard
- None
- Data Acquisition
- No
- CD Voltage Output to Coil
- 460-480 V
- Spark Output (millijoules)
- 100 Millijoules
- Minimum Operating Voltage
- 10V
- Maximum Operating Voltage
- 18V
- Ignition Box Color
- Silver
- Coil Included
- No
- Warranty
- 1-year
Package dimensions
Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
