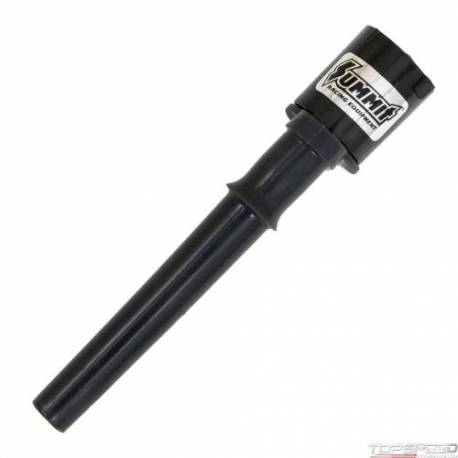

FORD MOD COIL BLACK 4V
Availability:
Out-of-Stock
Description
Ignition Coil, Ford Mod Motor Coil-On-Plug, 34,000 V, Epoxy, Female/Socket, Black, Ford, Modular, 4-Valve, Each
Your Ford is built to eat asphalt and clear its pipes with compacts. Summit Racing Ford Mod Motor coil-on-plug ignition coils are engineered to fuel the powerful combustion needed to unleash its inner potential. We use pure copper wire, rare earth magnets, and a custom primary and secondary wind, to provide 40 percent more voltage and 20 percent more energy (mj) from a stock-sized coil housing. They fit in the stock location, making changing these coils as easy as possible. If you are running at increased psi with a supercharger, turbocharger, nitrous, or are burning E85, you need the hottest and strongest spark possible to burn your fuel. With the increased voltage and energy output values, your cylinders will get the spark they need to maximize fuel burn!
Your Ford is built to eat asphalt and clear its pipes with compacts. Summit Racing Ford Mod Motor coil-on-plug ignition coils are engineered to fuel the powerful combustion needed to unleash its inner potential. We use pure copper wire, rare earth magnets, and a custom primary and secondary wind, to provide 40 percent more voltage and 20 percent more energy (mj) from a stock-sized coil housing. They fit in the stock location, making changing these coils as easy as possible. If you are running at increased psi with a supercharger, turbocharger, nitrous, or are burning E85, you need the hottest and strongest spark possible to burn your fuel. With the increased voltage and energy output values, your cylinders will get the spark they need to maximize fuel burn!
FORD MOD COIL BLACK 4V - Part number: SUM-8505651 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 850565-1 - FORD MOD COIL BLACK 4V ignition-coil
Data sheet
- Spark Duration
- 2.0 mS
- Inductance
- 7.80 mH
- Maximum Voltage
- 34,000 V
- Peak Current
- 9.5 amps
- Primary Resistance
- 0.700 ohms
- Secondary Resistance
- 6.30K ohms
- Turns Ratio
- 84:1
- Notes
- Fits 4-valve engines only. Includes dielectric grease.
- Length (in)
- 7.500 in.
- Mounting Bracket Included
- No
- Width (in)
- 2.375 in.
- Height (in)
- 7.500 in.
- Diameter (in)
- 1.375 in.
- Quantity
- Sold individually.
- Coil Wire Included
- No
- Coil Shape
- Round
- Coil Style
- Coil pack
- Coil Internal Construction
- Epoxy
- Coil Color
- Black
- Ballast Resistor Included
- No
Package dimensions
Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
