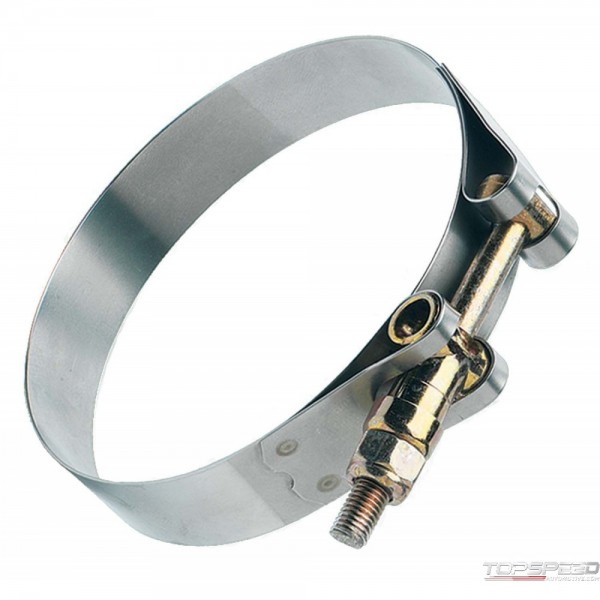

T-Bolt Clamp (Standard)

Manufacturer: GATES

Part number: 32756

MPN: 32756

UPC: 072053895896

Availability:

£22.55

Tax included

US1 Qty: 10, Delivery time: 7 working days

Description

GATES DRIVEN BY POSSIBILITY If it runs, we can help it run better. We're Gates, global leaders in power transmission and fluid power products and services. We serve customers across industries, bringing relentless innovation, and uncompromising quality to every product we make. Our reputation is built on over a century of experience, but everything we do is geared toward powering the future.

T-Bolt Clamp (Standard) - Part number: GAT-32756 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 32756 - T-Bolt Clamp (Standard) hose-clamp

Data sheet

Type: T-Bolt (Standard)
Size: 44
Clamping Range Min (in): 2.25
Clamping Range Max (in): 2.5625
Band Width (in): 0.75
Band Width (mm): 19.1
Recommended Torque (in/lbs): 75
Clamping Range Min (mm): 57.2
Clamping Range Max (mm): 65
Bolt Type: .25 in. - 28 Male Pipe Thread
Nut Type: .4375 in. Hex-Head

Package dimensions

Width: 1.00 inch
Height: 1.00 inch
Depth: 1.00 inch
Weight: 0.16 lb
