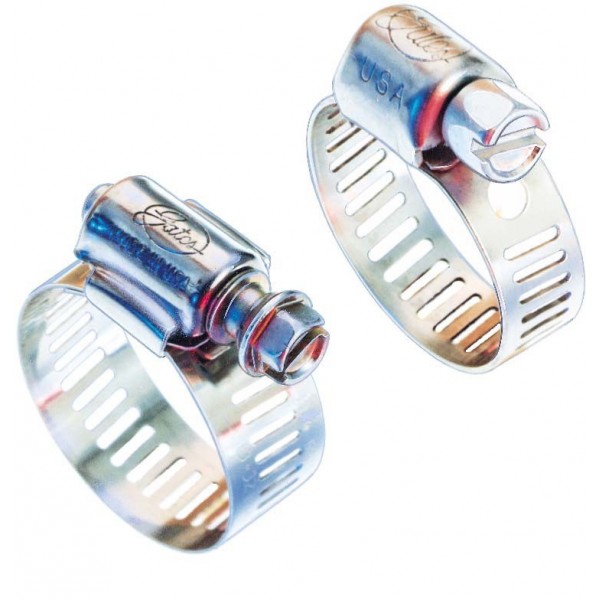

Stainless Steel Clamp (Standard)

Manufacturer: GATES
Part number: 32064
MPN: 32064
UPC: 072053021752
Availability:
£22.55
Tax included

Qty: 10, Delivery time: 7 working days

Description

GATES DRIVEN BY POSSIBILITY If it runs, we can help it run better. We're Gates, global leaders in power transmission and fluid power products and services. We serve customers across industries, bringing relentless innovation, and uncompromising quality to every product we make. Our reputation is built on over a century of experience, but everything we do is geared toward powering the future.

Stainless Steel Clamp (Standard) - Part number: GAT-32064 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 32064 - Stainless Steel Clamp (Standard) hose-clamp

Data sheet

Type
Stainless Steel (Standard)
Material
Stainless Steel
Size
64
Housing Material
Stainless Steel
Hose I.D. Min (in)
2.25
Hose I.D. Max (in)
4
Clamping Range Min (in)
2.625
Clamping Range Max (in)
4.5
Band Width (in)
0.5
Band Width (mm)
13
Screw Type
Deep Slot Hex-Head
Recommended Torque (in/lbs)
25-35
Maximum Torque (in/lbs)
50

Package dimensions

Width: 1.00 inch
Height: 1.00 inch
Depth: 1.00 inch
Weight: 0.11 lb
