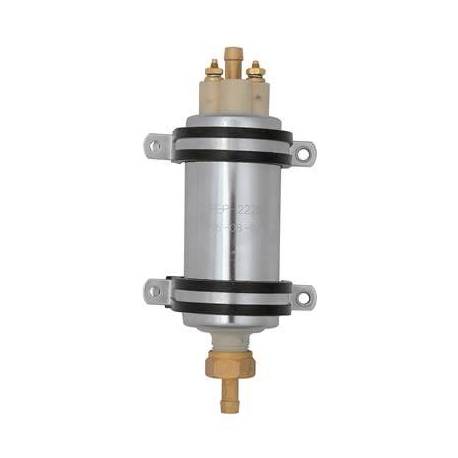

ELECTRONIC FUEL PUMP

Manufacturer: Summit Racing
Part number: G3138
MPN: G3138
UPC: 190861023307
Availability: Out-of-Stock
£0.00
Tax included

Call to check: 0044 (0) 1933 225 564

Description

Fuel Pump, Electric, High-Pressure, External, Inline, Gasoline, Universal, Each

Multi-port EFI systems need a stable fuel supply at any rpm, and Summit high-pressure, high-flow electric fuel pumps supply it. Summit high-flow pumps also have 5/16 in. inlet and outlets, brass stud terminals for secure connections, and two included cushioned clamps for inline mounting. They're ideal as stand-alone pumps for multi-port EFI systems on engines making up to 500 hp, or as boosters for nitrous applications. Mounting bolts are included.

ELECTRONIC FUEL PUMP - Part number: SUM-G3138 - for American Cars - delivery to the UK and the EU

Manufacturer part number: G3138 - ELECTRONIC FUEL PUMP fuel-pump

Data sheet

Outlet Quantity
One
Mounting Hardware Included
No
Fuel Pump Type
Electric external
Notes
Fuel pump overall length is 7.250 in. and diameter is 1.812 in. This is a push style pump, and for best performance it should be mounted as close to the fuel
Wiring Harness Included
No
Mounting Bracket Included
Yes
Flow Rate
60 gph/227 lph
Quantity
Sold individually.
Pulley Included
No
Fuel Pump Voltage
12 V
Fuel Pressure (psi)
70 psi
Fuel Pressure Regulator Included
No
Sending Unit Included
No
Fuel Pump Outlet Size
5/16 in.
Outlet Attachment
Hose barb
Gasket Included
No

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
