• Out-of-Stock

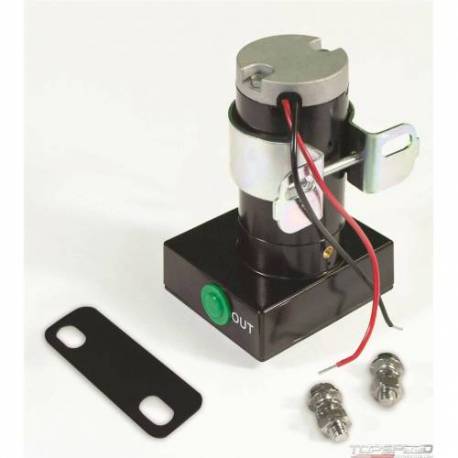

FUEL PUMP BLK 140GPH

Manufacturer: Summit Racing
Part number: G313617
MPN: G3136-17
UPC: 190861206915
Availability: Out-of-Stock
£145.95
Tax included

Call to check: 0044 (0) 1933 225 564

Description

Fuel Pump, Electric, External, 140 gph, Universal, Gasoline, Black, Carbureted, Each

Constructed of lightweight aluminum, our Summit Racing electric fuel pumps are designed for consistent performance. These pumps have 3/8 in. NPT ports and externally accessible pressure relief valves, and draw 4 amps or less at full load. Designed for carbureted applications only. Mounting bracket included.

FUEL PUMP BLK 140GPH - Part number: SUM-G313617 - for American Cars - delivery to the UK and the EU

Manufacturer part number: G3136-17 - FUEL PUMP BLK 140GPH fuel-pump

Data sheet

Inlet Quantity
One
Outlet Quantity
One
Mounting Hardware Included
No
Fuel Pump Type
Electric external
Notes
Maximum pressure of 16.5 psi was achieved at 13.5 volts at the rated flow with a restriction simulating the presence of a carburetor.
Wiring Harness Included
No
Mounting Bracket Included
Yes
Flow Rate
140 gph/530 lph
Quantity
Sold individually.
Pulley Included
No
Fuel Pump Voltage
12 V
Fuel Pressure (psi)
16 psi
Fuel Pressure Regulator Included
No
Sending Unit Included
No
Fuel Pump Inlet Size
3/8 in. NPT
Inlet Attachment
Female threads
Fuel Pump Outlet Size
3/8 in. NPT
Outlet Attachment
Female threads
Gasket Included
No

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
