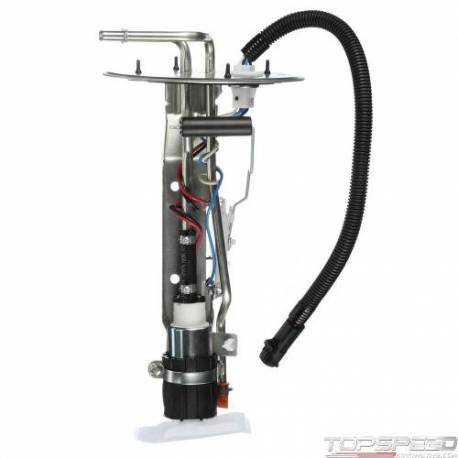

Fuel Pump Hanger Assembly
Availability:
Qty: 3, Delivery time: 7 working days
Qty: 4, Delivery time: 8 working days
Description
100 years of OE experience, supplier to the world's top automakers, OE Heritage and knowledge built into every aftermarket part, comprehensive portfolio for a wide range of vehicles and model years.
With a presence in more than 150 countries, and a global network of over 2750 service centers, Delphi Technologies aftermarket provides OE specification end-to-end solutions from components to sophisticated software solutions. With a wide-ranging portfolio including gasoline fuel systems, diesel fuel systems, maintenance solutions, engine management and vehicle electronics, backed by OE-level diagnostic and test equipment, training and technical information, Delphi Technologies enables garages to service and repair vehicles right the first time.
Delphi Technologies is a brand of BorgWarner Inc.
With a presence in more than 150 countries, and a global network of over 2750 service centers, Delphi Technologies aftermarket provides OE specification end-to-end solutions from components to sophisticated software solutions. With a wide-ranging portfolio including gasoline fuel systems, diesel fuel systems, maintenance solutions, engine management and vehicle electronics, backed by OE-level diagnostic and test equipment, training and technical information, Delphi Technologies enables garages to service and repair vehicles right the first time.
Delphi Technologies is a brand of BorgWarner Inc.
Fuel Pump Hanger Assembly - Part number: DPH-HP10089 - for American Cars - delivery to the UK and the EU
Manufacturer part number: HP10089 - Fuel Pump Hanger Assembly fuel-pump-hanger-assembly
Data sheet
- Fuel Type
- Gas
- Outlet Quantity
- 2
- Gasket Or Seal Included
- Yes
- Terminal Quantity
- 4
- Terminal Gender
- Male
- Terminal Type
- Pin
- Inlet Type
- Strainer
- Outlet Type
- Quick Connect
- Strainer Included
- Yes
- Package Contents
- Fuel Pump Hanger Assembly w/Float Arm, (2) Retainer Clips, Instruction Sheet
- Item Grade
- Standard Replacement
- Pump Type
- Electric
- In Tank or External
- In Tank
- System Pressure (psi)
- 12.0
- Average Current Draw
- 6
- Average Flow Rating (GPH)
- 29
- System Pressure
- 44 psi
- Maximum Pressure (PS)
- 73.0
- Outlet Outside Diameter (in)
- 0.375
- Internal Or External Strainer
- External
- Resistance Ohms Empty
- 16.0
- Resistance Ohms Full
- 160.0
- Fuel Level Sender Assembly Included
- Yes
Package dimensions
Width: 8.25 inch
Height: 8.25 inch
Depth: 15.69 inch
Weight: 2.70 lb
