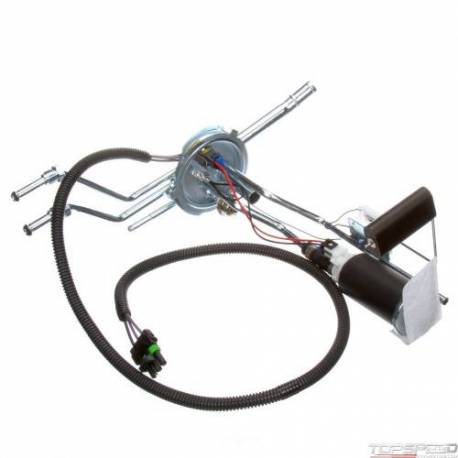

Fuel Pump Hanger Assembly

Manufacturer: DELPHI Technologies
Part number: HP10011
MPN: HP10011
UPC: 689604187326
Availability: Last items in stock
£549.55
Tax included

Qty: 2, Delivery time: 7 working days

Description

100 years of OE experience, supplier to the world's top automakers, OE Heritage and knowledge built into every aftermarket part, comprehensive portfolio for a wide range of vehicles and model years.

With a presence in more than 150 countries, and a global network of over 2750 service centers, Delphi Technologies aftermarket provides OE specification end-to-end solutions from components to sophisticated software solutions. With a wide-ranging portfolio including gasoline fuel systems, diesel fuel systems, maintenance solutions, engine management and vehicle electronics, backed by OE-level diagnostic and test equipment, training and technical information, Delphi Technologies enables garages to service and repair vehicles right the first time.

Delphi Technologies is a brand of BorgWarner Inc.

Fuel Pump Hanger Assembly - Part number: DPH-HP10011 - for American Cars - delivery to the UK and the EU

Manufacturer part number: HP10011 - Fuel Pump Hanger Assembly fuel-pump-hanger-assembly

Data sheet

Fuel Type
Gas
Outlet Quantity
4
Gasket Or Seal Included
Yes
Terminal Quantity
3
Terminal Gender
Female
Terminal Type
Pin
Inlet Type
Strainer
Outlet Type
Quick Connect
Strainer Included
Yes
Package Contents
Fuel Pump Hanger Assembly w/Float Arm, Seal, (2) O-rings, Instruction Sheet
Item Grade
Standard Replacement
Pump Type
Electric
In Tank or External
In Tank
System Pressure (psi)
13.5
Average Current Draw
4
Average Flow Rating (GPH)
26
System Pressure
12 psi
Maximum Pressure (PS)
29.0
Outlet Outside Diameter (in)
0.375
Internal Or External Strainer
External
Resistance Ohms Empty
1.0
Resistance Ohms Full
90.0
Fuel Level Sender Assembly Included
Yes

Package dimensions

Width: 11.63 inch
Height: 8.25 inch
Depth: 23.63 inch
Weight: 3.15 lb
