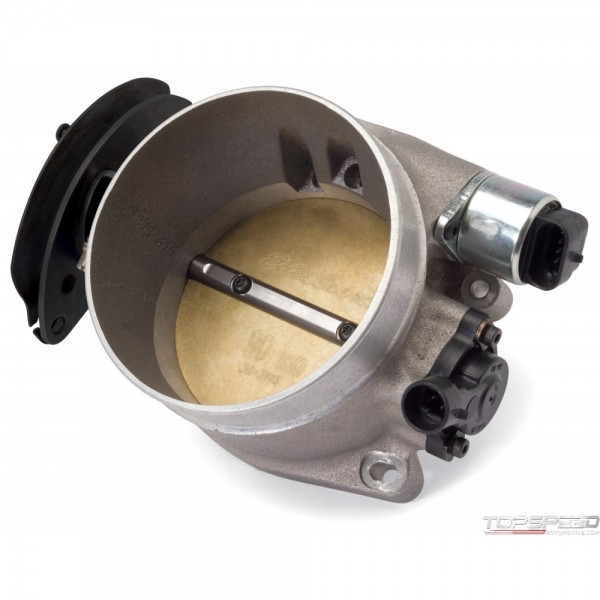

EFI THROTTLE BODY, PRO FLO XT 90MM
Availability:
Out-of-Stock
Description
The Edelbrock 90mm single bore throttle body is intended for Pro-Flo XT and EFI Victor Elbow applications. It has provisions for either LS1 or LS2 mounting bolt patterns. The throttle body uses LS1 style TPS and IAC. It offers better idle control than other 90mm throttle bodies, because of the addition of an idle bleed screw. By using the bleed screw to create a base amount of idle air flow instead of throttle tip-in, the TPS signal is unaffected. Features a 4.5in. Inlet. Satin Finish
EFI THROTTLE BODY, PRO FLO XT 90MM - Part number: EDL-3869 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 3869 - EFI THROTTLE BODY, PRO FLO XT 90MM fuel-injection-throttle-body
Data sheet
- Type
- Single Blade
- Finish
- Satin
- Material
- Aluminum
- Gasket Or Seal Included
- Yes
- Cubic Feet Per Minute Rating
- 1100
- Bore Diameter
- 90 MM
- Series
- Pro-Flo XT
- Quantity
- Sold Individually
- Idle Air Control Motor Included
- Yes
- Throttle Position Sensor Included
- Yes
Package dimensions
Width: 10.00 inch
Height: 5.00 inch
Depth: 10.00 inch
Weight: 3.55 lb
